Brand: Panduit
|
SKU:
PAN-PV14-8FB-3K

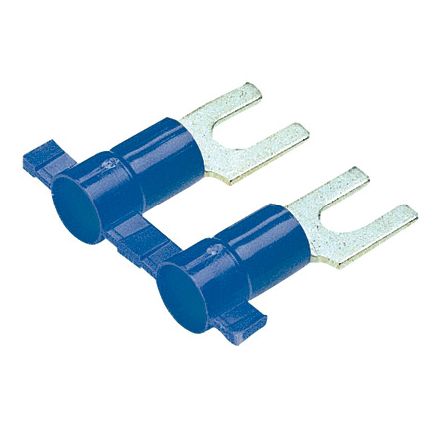

Panduit PV14-8FB-3K | Reel Smart PV14-8FB-3K Fork Terminal, Blue, Vinyl, 14-16 AWG, #8 Stud, PK3000
Regular price
$1,071.64
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV14-8FB-3K | Reel Smart PV14-8FB-3K Fork Terminal, Blue, V...
Regular price
$1,071.64
Unit price
Brand: Panduit
|
SKU:
PAN-PV14-8FB-3K
Regular price
$1,071.64
Unit price
Shipping calculated at checkout.
Description
Description
Panduit PV14-8FB-3K | Reel Smart PV14-8FB-3K Fork Terminal, Blue, Vinyl, 14-16 AWG, #8 Stud, PK3000
The PV14-8FB-3K Reel Smart Terminal is a continuously molded and vinyl fully insulated fork terminal. The continuously molded design allows for consistent and reliable processing through Panduit applicators. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.
Panduit - PV14-8FB-3K - Features
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Fork design provides for fast and easy installation, without the need to remove fastener
- Insulation support helps to prevent wire damage in bending applications
- Maximum insulation temperature 221F (105C)
- UL and CSA rated up 600 V per UL 486
Specifications
Specifications
Panduit - PV14-8FB-3K - Product Categories
- Wire Termination
- Fork Terminals
Panduit - PV14-8FB-3K - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PV14-8FB-3K |
| Item Description | Reel Smart PV14-8FB-3K Fork Terminal, Blue, Vinyl, 14-16 AWG, #8 Stud, PK3000 |
| Fork Type | Standard |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Stud Size | #8 |
| Wire Strip Length (In.) | 11/32 |
| Wire Strip Length (mm) | 8.7 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Barrel Type | Funnel |
| Flammability Rating | UL94V-0 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Seam Type | Butted |
| Maximum Wire Insulation Diameter (In.) | 0.17 |
| Maximum Wire Insulation Diameter (mm) | 4.32 |
| Stud Hole Size (In.) | #8 |
| Stud Hole Size (mm) | 4 |
| Overall Length (In.) | 0.84 |
| Overall Length (mm) | 21.3 |
| Overall Width (In.) | 0.31 |
| Overall Width (mm) | 7.9 |
| Tongue Length (In.) | 0.42 |
| Tongue Length (mm) | 10.7 |
| Sub Brand | Reel Smart |
| Tongue Thickness (In.) | 0.03 |
| Tongue Thickness (mm) | 0.8 |
| Tongue Width (In.) | 0.31 |
| Tongue Width (mm) | 7.9 |
| Packaging Type | Reel |
| Product Type | Fork Terminal |
| For Use With | Crimp press with CA9 (CD9-2A) or CA-800EZ (CD-800-2) applicator |
| Part Features | Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time. Fork design provides for fast and easy installation, without the need to remove fastener. Insulation support helps to prevent wire damage in bending applications. |
Panduit - PV14-8FB-3K - Package Information
| UPC | 07498380445 |
|---|---|
| Standard Package Quantity | 3000 |
| Standard Package Volume (cf) | 0.9208 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - PV14-8FB-3K - Videos
| Video 1 | Click to View |
|---|
