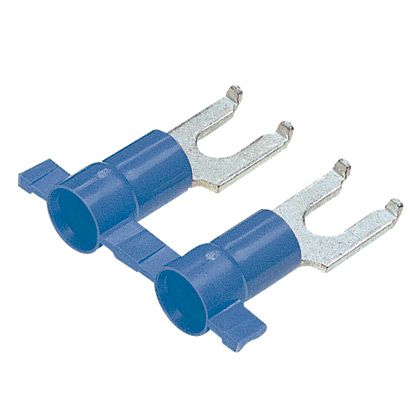

Panduit PV14-8FFB-3K | Fork Terminal | UPC - 07498380714
Regular price
$1,191.69
Unit price
Brand: Panduit
|
SKU:
PAN-PV14-8FFB-3K
Regular price
$1,191.69
Unit price
Description
Description
Panduit Pan-Term Reel Smart Fork Terminal, Insulated, Series: PNF-FF, Solid/Stranded Copper Conductor, 16 to 14 AWG Conductor, #8 Stud, 0.86 in Length, Butted Seam Barrel, Flanged Fork Tongue, 0.31 in W x 0.03 in THK Tongue, 600 VAC, Specifications: 5/16 in L Wire Strip, 0.17 in Dia Max Vinyl Insulation, 0.23 in Clearance, Funnel Entry Barrel Configuration, 221 deg F, Copper, Tin Plated, Blue
Features + Benefits
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Flange design provides extra secure connection on a variety of applications
- Fork design provides for fast and easy installation, without the need to remove fastener
- Insulation support helps to prevent wire damage in bending applications
Panduit PV14-8FFB-3K | Fork Terminal | UPC - 07498380714 Key Specs
| Fork Type | Flanged Fork |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Stud Size | #8 |
| Standards Met | CSA certified C22.2 No.65,UL Listed UL486A-486B |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
Panduit PV14-8FFB-3K | Fork Terminal | UPC - 07498380714 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PNF18-6FF-3K Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - A41077 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit PV14-8FFB-3K | Fork Terminal | UPC - 07498380714 Environmental Information
| Panduit's RoHS Statement | Download and View |
