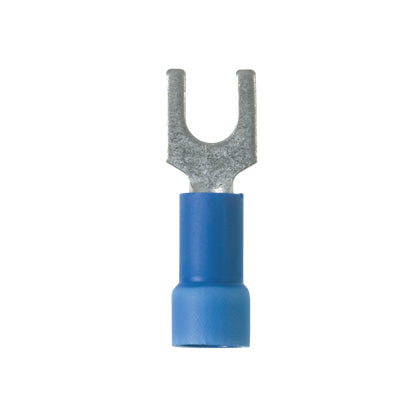

Panduit PV14-8FX-C | Fork Terminal | UPC - 07498380426
Regular price
$105.14
Unit price
Brand: Panduit
|
SKU:
878786
Regular price
$105.14
Unit price
Description
Description
Panduit Pan-Term Fork Terminal, Series: PV-FX, Stranded Copper Conductor, 18 to 14 AWG Conductor, #8 Stud, 0.96 in Length, Brazed Seam/Funnel Entry Barrel, Fork Tongue, 0.31 in W x 0.03 in THK Tongue, 600 VAC, 7/32 in L Wire Strip, 0.2 in Dia Vinyl Insulation, 0.2 in Clearance, 221 deg F, Copper, Tin Plated, Blue
Features + Benefits
- Fork design provides for fast and easy installation, without the need to remove fastener
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Non-expanded insulation
Panduit PV14-8FX-C Key Specs
| Fork Type | Standard |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Stud Size | #8 |
| Wire Strip Length (In.) | 0.31 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | CSA certified C22.2 No.65,UL Listed UL486A-486B |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
Panduit PV14-8FX-C Data Sheets
| Part Drawings | HD Flex 2 RU Enclosure (FLEX2U**): 12F187AM-DC | Download and View |
| Specification Sheets | Distribuidores de Fibra HD Flex: FBSP92--WW-SPA | Download and View |
| Installation Documents | HD Flex Fiber Cassette Enclosures: FS127A | Download and View |
