Brand: Panduit
|
SKU:
PAN-PV14-8FX-M

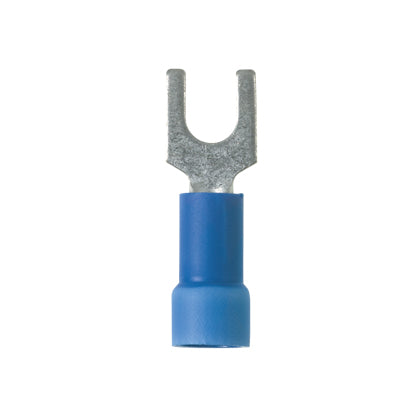

Panduit PV14-8FX-M | Fork Terminal | UPC - 07498380427
Regular price
$318.48
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV14-8FX-M | Fork Terminal | UPC - 07498380427
Regular price
$318.48
Unit price
Brand: Panduit
|
SKU:
PAN-PV14-8FX-M
Regular price
$318.48
Unit price
Shipping calculated at checkout.
Description
Description
Panduit Pan-Term Fork Terminal, Loose Piece, Series: PV-FX, Stranded Copper Conductor, 18 to 14 AWG Conductor, #8 Stud, 0.96 in Length, Brazed Seam/Funnel Entry/Insulation Support Barrel, Standard Fork Tongue, 0.31 in W Tongue, 600 VAC, 0.31 in L Wire Strip, 0.2 in Vinyl Insulation, 221 deg F, Copper, Tin Plated, Blue
Features + Benefits
- Locks in place for secure connection
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Fork design provides for fast and easy installation, without the need to remove fastener
- Brazed seam protects terminal barrel from splitting during the crimp process
Panduit PV14-8FX-M | Fork Terminal | UPC - 07498380427 Key Specs
| Fork Type | Standard |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Stud Size | #8 |
| Wire Strip Length (In.) | 0.31 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | CSA certified C22.2 No.65,UL Listed UL486A-486B |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
Panduit PV14-8FX-M | Fork Terminal | UPC - 07498380427 Data Sheets
| Part Drawings | Part Drawing - PDF - A41258 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit PV14-8FX-M | Fork Terminal | UPC - 07498380427 Environmental Information
| Panduit's RoHS Statement | Download and View |
