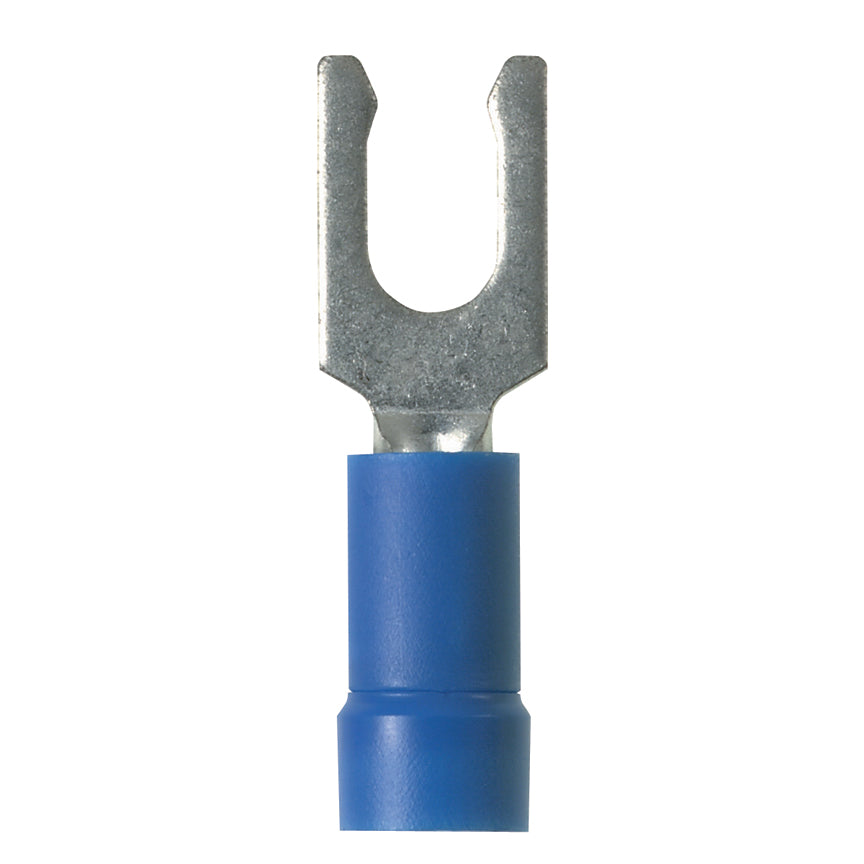

Panduit PV14-8LF-E | Fork Terminal | UPC - 07498336422
Regular price
$21.17
Unit price
Brand: Panduit
|
SKU:
10044786
Regular price
$21.17
Unit price
Description
Description
Panduit Pan-Term Fork Terminal, Series: PV-LF, Stranded Copper Conductor, 18 to 14 AWG Conductor, #8 Stud, 0.97 in Length, Brazed Seam/Funnel Entry Barrel, Locking Fork Tongue, 0.29 in W x 0.03 in THK Tongue, 600 VAC, 5/16 in L Wire Strip, 0.17 in Dia Vinyl Insulation, 1/4 in Clearance, 221 deg F, Copper, Tin Plated, Blue
- Locks in place for secure connection
- Fork design provides for fast and easy installation, without the need to remove fastener
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
Panduit Panduit PV14-8LF-E | Fork Terminal | UPC - 07498336422 Key Specs
| Fork Type | Locking Fork |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #18 |
| Minimum Copper Conductor Size (AWG SOL) | #18 |
| Minimum Copper Conductor Size (AWG STR) | #18 |
| Minimum Copper Conductor Size (AWG) | #18 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Stud Size | #8 |
| Wire Strip Length (In.) | 0.31 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | CSA certified C22.2 No.65,UL Listed UL486A-486B |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
Panduit Panduit PV14-8LF-E | Fork Terminal | UPC - 07498336422 Environmental Information
| Panduit's RoHS Statement | Download and View |
