Brand: Panduit
|
SKU:
DRC-001919

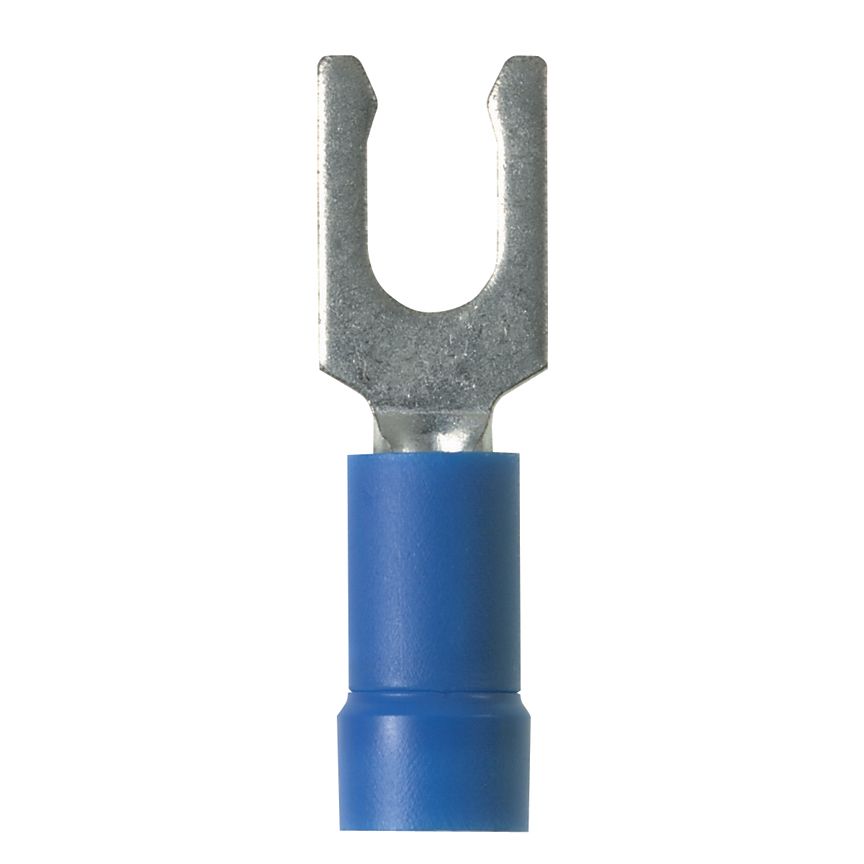

Panduit PV14-8LF-M | Pan-Term PV14-8LF-M Fork Terminal, Blue, Vinyl, 14-18 AWG, #8 Stud, PK1000
Regular price
$262.30
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV14-8LF-M | Pan-Term PV14-8LF-M Fork Terminal, Blue, Vinyl...
Regular price
$262.30
Unit price
Description
Description
Panduit PV14-8LF-M | Pan-Term PV14-8LF-M Fork Terminal, Blue, Vinyl, 14-18 AWG, #8 Stud, PK1000
The PV14-8LF-M Pan-Term Terminal is a vinyl insulated, locking fork terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Barrel serrations assure good wire contact and maximum tensile strength.
Specifications
Specifications
Panduit - PV14-8LF-M - Product Categories
- Wire Termination
- Fork Terminals
Panduit - PV14-8LF-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PV14-8LF-M |
| Item Description | Pan-Term PV14-8LF-M Fork Terminal, Blue, Vinyl, 14-18 AWG, #8 Stud, PK1000 |
| Fork Type | Locking Fork |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #18 |
| Minimum Copper Conductor Size (AWG SOL) | #18 |
| Minimum Copper Conductor Size (AWG STR) | #18 |
| Minimum Copper Conductor Size (AWG) | #18 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Stud Size | #8 |
| Wire Strip Length (In.) | 5/16 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Barrel Type | Funnel Entry |
| Barrel Length (In.) | 0.49 |
| Barrel Length (mm) | 12.3 |
| Flammability Rating | UL94V-0 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Seam Type | Brazed |
| Maximum Wire Insulation Diameter (In.) | 0.17 |
| Maximum Wire Insulation Diameter (mm) | 4.32 |
| Stud Hole Size (In.) | #8 |
| Stud Hole Size (mm) | 4 |
| Overall Length (In.) | 0.97 |
| Overall Length (mm) | 24.64 |
| Overall Width (In.) | 0.29 |
| Overall Width (mm) | 7.37 |
| Tongue Length (In.) | 0.49 |
| Tongue Length (mm) | 12.3 |
| Sub Brand | Pan-Term |
| Tongue Thickness (In.) | 0.03 |
| Tongue Thickness (mm) | 0.8 |
| Tongue Width (In.) | 0.29 |
| Tongue Width (mm) | 7.4 |
| Packaging Type | Box |
| Product Type | Locking Fork Terminal |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
Brand Name - PV14-8LF-M - Package Information
| UPC | 07498380809 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.5261 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Brand Name - PV14-8LF-M - Videos
| Video URL 1 | Click to View |
|---|---|
| Video URL 2 | Click to View |
