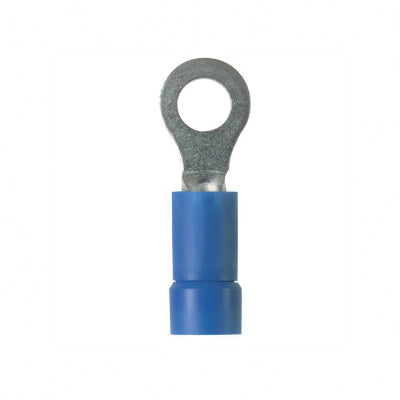

Panduit PV14-8R-C | Pan-Term PV14-8R-C Ring Terminal, Blue, Vinyl, 14-16 AWG, #8 Stud, PK100
The PV14-8R-C Pan-Term Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.
Panduit - PV14-8R-C - Features
- Panduit Pan-Term Terminal, Type PV-R, Solid/Stranded Conductor, 16 to 14 AWG Conductor, #6 Stud, 0.92 in Length, Brazed Seam/Funnel Entry/Insulation Support Barrel, Ring Tongue, 0.31 in W x 0.03 in THK Tongue, 600 VAC, 5/16 in L Wire Strip, 1/4 in Clearance, 221 deg F, Copper, Tin Plated, Blue
- Features + Benefits
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Insulation support helps to prevent wire damage in bending applications
- Expanded wire entry designed to accommodate wire with a larger insulation thickness
- Brazed seam protects terminal barrel from splitting during the crimp process
Specifications
Specifications
Panduit - PV14-8R-C - Product Categories
- Wire Termination
- Ring Terminals
Panduit - PV14-8R-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PV14-8R-C |
| Item Description | Pan-Term PV14-8R-C Ring Terminal, Blue, Vinyl, 14-16 AWG, #8 Stud, PK100 |
| Stud Hole Size (In.) | #8 |
| Stud Hole Size (mm) | 4 |
| Stud Size | #8 |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Wire Strip Length (In.) | 5/16 |
| Wire Strip Length (mm) | 7.8 |
| Standards Met | cULus Listed 587H E52164, CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Barrel Type | Funnel |
| Flammability Rating | UL94V-0 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Wire Insulation Diameter (In.) | 0.17 |
| Maximum Wire Insulation Diameter (mm) | 4.3 |
| Seam Type | Brazed |
| Sub Brand | Pan-Term |
| Overall Length (In.) | 0.92 |
| Overall Length (mm) | 23.4 |
| Overall Width (In.) | 0.31 |
| Overall Width (mm) | 7.9 |
| Tongue Thickness (In.) | 0.03 |
| Tongue Thickness (mm) | 0.8 |
| Tongue Width (In.) | 0.31 |
| Tongue Width (mm) | 7.9 |
| Packaging Type | Bottle |
| Product Type | Ring Terminal |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Part Features | • Ring tongue design assures a secure connection in high vibration applications • Insulation support helps to prevent wire damage in bending applications • Internal barrel serrations assure good wire contact and maximum tensile strength |
| MPN: | PV14-8R-C |
| UPC: | 074983801183 |
| Barrel Type: | Brazed Seam/Funnel Entry/Insulation Support |
| Color: | Blue |
| Conductor Size: | 16 to 14 AWG |
| Conductor Type: | Solid/Stranded |
| Finish: | Tin Plated |
| Length: | 0.92 in |
| Material: | Copper |
| Series: | PV Series |
| Specifications: | 5/16 in L Wire Strip, 1/4 in Clearance |
| Stud Size: | #6 |
| Temperature Rating: | 221 deg F |
| Tongue Size: | 0.31 in W x 0.03 in THK |
| Tongue Type: | Ring |
| Type: | Type PV-R |
| Voltage Rating: | 600 VAC |
Panduit - PV14-8R-C - Package Information
| UPC | 07498380118 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0067 |
| Standard Ctn. Quantity | 500 |
| Standard Ctn. Volume (cf) | 0.0337 |
