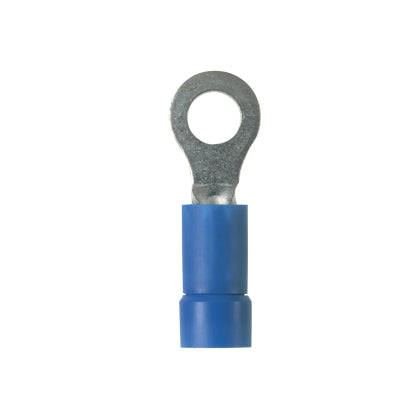

Panduit PV14-8R-E | Ring Terminal | UPC - 07498336357
Regular price
$18.19
Unit price
Brand: Panduit
|
SKU:
10044875
Regular price
$18.19
Unit price
Description
Description
Ring Terminal, 16 – 14 AWG, #8 stud size, vinyl insulated, funnel entry, convenience package.
Panduit Panduit PV14-8R-E | Ring Terminal | UPC - 07498336357 Key Specs
| Stud Hole Size (In.) | 1/6 |
| Stud Hole Size (mm) | 4.3 |
| Stud Size | #8 |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Minimum Copper Conductor Size (kcmil) | 4.1 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Wire Strip Length (In.) | 0.31 |
| Wire Strip Length (mm) | 7.8 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
Panduit Panduit PV14-8R-E | Ring Terminal | UPC - 07498336357 Data Sheets
| Cross References | Cross Reference - Obsolete and Replacementnew | Download and View |
| Selection Guides | Selection Guide - WW-TMFL05 New Convenience Pack Terminals2 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit Panduit PV14-8R-E | Ring Terminal | UPC - 07498336357 Environmental Information
| Panduit's RoHS Statement | Download and View |
