Panduit PV14-P47B-3K | Terminals on Reel | UPC - 07498336913
Regular price
$1,471.75
Unit price
Brand: Panduit
|
SKU:
PAN-PV14-P47B-3K
Regular price
$1,471.75
Unit price
Shipping calculated at checkout.
Description
Description

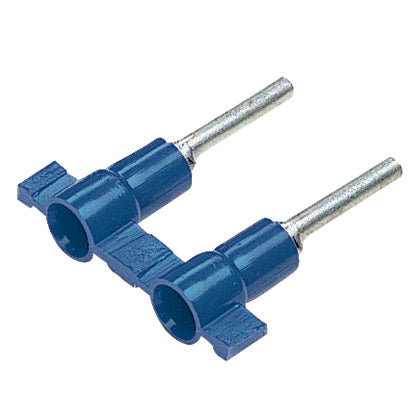

Panduit Reel Smart Pin Terminal, Insulated Standard, Series: PV Series, Solid/Stranded Copper Conductor, 16 to 14 AWG Conductor, 0.08 in Pin Dia, 0.49 in Pin Length, 600 VAC, 0.3 in L Wire Strip, 0.17 in Maximum Vinyl Insulation, 0.03 in Stock, Copper, 221 deg F, 0.9 in Overall Length, Blue
Features + Benefits
- Solid pin designed to prevent damage to the wire from over tightening, resulting in a reliable electrical connection insulation support helps to prevent wire damage in bending applications internal barrel serrations assure good wire contact and maximum tensile strength
- Pin shape enclosure
- Tin-plated finish
Panduit PV14-P47B-3K | Terminals on Reel | UPC - 07498336913 Key Specs
| Pin Length (In.) | 0.49 |
| Pin Length (mm) | 12.4 |
| Insulation Material | Vinyl |
| Maximum Wire Size (AWG) | 16 - 14 AWG |
| Wire Strip Length (In.) | 0.30 |
| Wire Strip Length (mm) | 6.3 |
| Standards Met | UL |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Barrel Type | Butted |
| Flammability Rating | UL94-V0 |
| Insulation Diameter (In.) | 0.17 |
| Insulation Diameter (mm) | 4.3 |
| Maximum Wire Insulation Diameter (In.) | 0.17 |
| Maximum Wire Insulation Diameter (mm) | 4.3 |
| Overall Length (In.) | 0.9 |
| Overall Length (mm) | 22.9 |
Panduit PV14-P47B-3K | Terminals on Reel | UPC - 07498336913 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PV18-P47B-3K Product Page | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
| Part Drawings | Pin Terminals, Vinyl Insulated, Continuous Reel | Download and View |
Panduit PV14-P47B-3K | Terminals on Reel | UPC - 07498336913 Environmental Information
| Panduit's RoHS Statement | Download and View |
