Panduit PV18-10FB-3K | Fork Terminal | UPC - 07498380442
Regular price
$1,156.68
Unit price
Description
Description

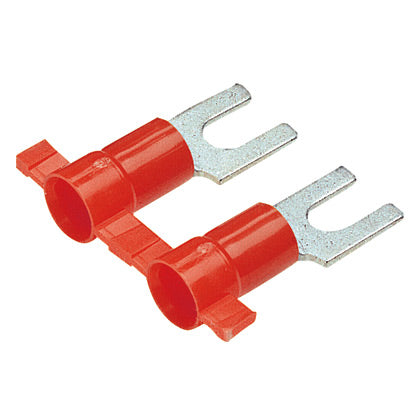

Panduit Pan-Term Reel Smart Fork Terminal, Series: PV-FB, Stranded Copper Conductor, 22 to 18 AWG Conductor, #10 Stud, 0.86 in Length, Butted Seam/Funnel Entry/Insulation Support Barrel, Standard Fork Tongue, 0.35 in W Tongue, 600 VAC, 0.25 in L Wire Strip, 0.15 in Vinyl Insulation, 221 deg F, Copper, Tin Plated, Red
- Fork design provides for fast and easy installation, without the need to remove fastener
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Brazed seam protects terminal barrel from splitting during the crimp process
- Non-expanded insulation
Panduit Panduit PV18-10FB-3K | Fork Terminal | UPC - 07498380442 Key Specs
| Fork Type | Standard |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #18 |
| Maximum Copper Conductor Size (AWG STR) | #18 |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Stud Size | #10 |
| Wire Strip Length (In.) | 0.25 |
| Wire Strip Length (mm) | 6.4 |
| Standards Met | CSA certified C22.2 No.65,UL Listed UL486A-486B |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
Panduit Panduit PV18-10FB-3K | Fork Terminal | UPC - 07498380442 Environmental Information
| Panduit's RoHS Statement | Download and View |
