Panduit PV18-10LFNB-3K | Terminals on a Reel | UPC - 07498380370
Regular price
$1,000.97
Unit price
Description
Description

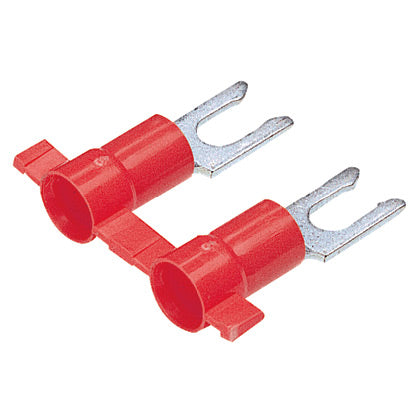

Panduit Pan-Term Reel Smart Fork Terminal, Reel Fed, Series: PV-LFNB, Stranded Copper Conductor, 22 to 18 AWG Conductor, #10 Stud, 0.87 in Length, Butted Seam/Funnel Entry Barrel, Narrow Locking Fork Tongue, 0.29 in W x 0.03 in THK Tongue, 600 VAC, 1/4 in L Wire Strip, 0.15 in Dia Vinyl Insulation, 0.23 in Clearance, 221 deg F, Copper, Tin Plated, Red
Features + Benefits
- Fork design provides for fast and easy installation, without the need to remove fastener
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
Panduit Panduit PV18-10LFNB-3K | Terminals on a Reel | UPC - 07498380370 Key Specs
| Fork Type | Locking Fork |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #18 |
| Maximum Copper Conductor Size (AWG STR) | #18 |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Stud Size | #10 |
| Wire Strip Length (In.) | 0.25 |
| Wire Strip Length (mm) | 6.4 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
Panduit Panduit PV18-10LFNB-3K | Terminals on a Reel | UPC - 07498380370 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PV18-6LFB-3K Product Page | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit Panduit PV18-10LFNB-3K | Terminals on a Reel | UPC - 07498380370 Environmental Information
| Panduit's RoHS Statement | Download and View |
