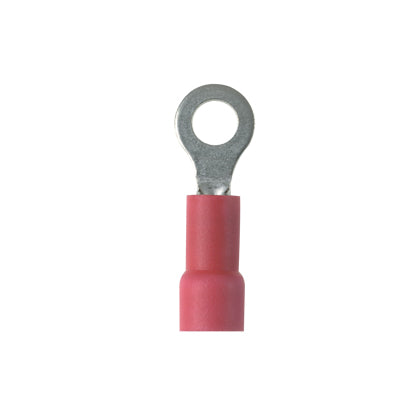

Panduit PV18-14RX-MY | Ring Terminal | UPC - 07498341419
Regular price
$406.87
Unit price
Brand: Panduit
|
SKU:
10044879
Regular price
$406.87
Unit price
Description
Description
Panduit Pan-Term Terminal, Type PV-RX, Solid/Stranded Conductor, 22 to 18 AWG Conductor, 1/4 in Stud, 1.17 in Length, Beveled Edge/Brazed Seam/Expanded Entry/Serrated Barrel, Ring Tongue, 0.46 in W x 0.03 in THK Tongue, 600 VAC, 5/16 in L Wire Strip, 0.4 in Clearance, 221 deg F, Copper, Tin Plated, Red
- One hole with inspection hole
- Insulug type YAE-N nylon insulated terminals are designed with a multi finger insulation grip for paper, EPR and other elastic or hard to grip insulations
- EPR and other elastic or hard to grip Insulations
- The metal fingers firmly grip the insulation providing superior holding characteristics
- Cable support and strain relief
- Type YAE-N terminals are rated 105 deg C and meet military standard AS25036 Class 2 and SAE-AS7928 requirements
- Multi-finger insulation grip provides superior insulation holding characteristics
- Especially on epr and other elastic type insulations
- Brazed seam provides stronger more durable termination
- Manufactured of pure electrolytic copper provides maximum conductivity
- Low resistance and ductility for excellent crimp forming properties
- Deep V groove
- Inner barrel serrations provide optimum conductivity
- For heavy duty industrial, utility and military power and control-circuit applications
- Pure electrolytic copper
Panduit Panduit PV18-14RX-MY | Ring Terminal | UPC - 07498341419 Key Specs
| Note | PV18-14RX-MY replaces PV18-14RX-M |
| Stud Hole Size (In.) | 27/100 |
| Stud Hole Size (mm) | 6.8 |
| Stud Size | 1/4" |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #18 |
| Maximum Copper Conductor Size (AWG STR) | #18 |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Wire Strip Length (In.) | 0.31 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | UL 486A - UL 486B, C22.2 No. 65 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
Panduit Panduit PV18-14RX-MY | Ring Terminal | UPC - 07498341419 Environmental Information
| Panduit's RoHS Statement | Download and View |
