Brand: Panduit
|
SKU:
PAN-PV18-38RB-2K

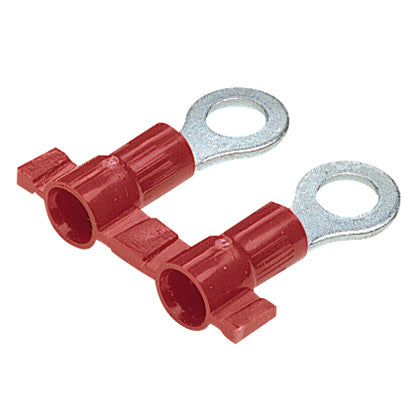

Panduit PV18-38RB-2K | Ring Terminal on Reel | UPC - 07498370537
Regular price
$1,029.13
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV18-38RB-2K | Ring Terminal on Reel | UPC - 07498370537
Regular price
$1,029.13
Unit price
Brand: Panduit
|
SKU:
PAN-PV18-38RB-2K
Regular price
$1,029.13
Unit price
Shipping calculated at checkout.
Description
Description
Panduit Pan-Term Reel Smart Terminal, Type PV-RB, Solid/Stranded Conductor, 22 to 18 AWG Conductor, 3/8 in Stud, 1.15 in Length, Insulation Support/Funnel Entry Barrel, Ring Tongue, 0.53 in W x 0.8 in THK Tongue, 600 VAC, 221 deg F, Copper, Tin Plated, Red
Features + Benefits
- For nuclear containment areas and high temperature to 300 deg F (150 deg C) applications
- Natural with appropriate color stripe to identify wire range
- Ring tongue design assures a secure connection in high vibration applications
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
Panduit PV18-38RB-2K | Ring Terminal on Reel | UPC - 07498370537 Key Specs
| Stud Hole Size (In.) | 3/8 |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #18 |
| Maximum Copper Conductor Size (AWG STR) | #18 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Wire Strip Length (In.) | 1/4 |
| Wire Strip Length (mm) | 6.4 |
| Standards Met | UL 486A/B, and CSA 22.2 No.65 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Funnel |
| Flammability Rating | UL94V-0 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
Panduit PV18-38RB-2K | Ring Terminal on Reel | UPC - 07498370537 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PV18-4RNB-3K Product Page | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
| Part Drawings | RING TERMINALS, 2 PC. VINYL INSULATED, #22-18 | Download and View |
Panduit PV18-38RB-2K | Ring Terminal on Reel | UPC - 07498370537 Environmental Information
| Panduit's RoHS Statement | Download and View |
