Brand: Panduit
|
SKU:
10044900

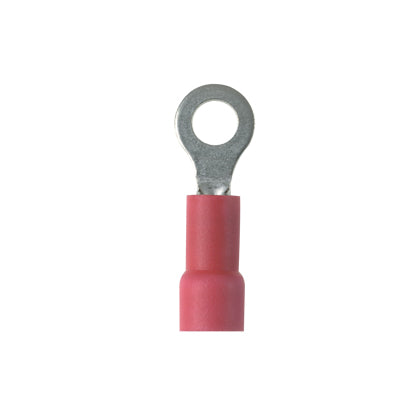

Panduit PV18-38RX-LY | Ring Terminal, Vinyl Expanded Insulation | UPC - 07498312067
Regular price
$47.04
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV18-38RX-LY | Ring Terminal, Vinyl Expanded Insulation | U...
Regular price
$47.04
Unit price
Description
Description
Panduit Pan-Term Terminal, Type PV-RX, Solid/Stranded Conductor, 22 to 18 AWG Conductor, 3/8 in Stud, 1-1/4 in Length, Brazed Seam/Serrated/Expanded Entry Barrel, Ring Tongue, 0.53 in W x 0.03 in THK Tongue, 600 VAC, 5/16 in L Wire Strip, 0.45 in Clearance, 221 deg F, Copper, Tin Plated, Red
Features + Benefits
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Ring tongue design assures a secure connection in high vibration applications
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
Panduit Panduit PV18-38RX-LY | Ring Terminal, Vinyl Expanded Insulation | UPC - 07498312067 Key Specs
| Note | PV18-38RX-LY replaces PV18-38RX-CY |
| Stud Size | 3/8" |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #18 |
| Maximum Copper Conductor Size (AWG STR) | #18 |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Wire Strip Length (In.) | 0.31 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | UL 486A - UL 486B, C22.2 No. 65 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Funnel |
Panduit Panduit PV18-38RX-LY | Ring Terminal, Vinyl Expanded Insulation | UPC - 07498312067 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PV18-4RX-CY Product Page | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit Panduit PV18-38RX-LY | Ring Terminal, Vinyl Expanded Insulation | UPC - 07498312067 Environmental Information
| Panduit's RoHS Statement | Download and View |
