Panduit PV18-4RNB-3K | Ring Terminal, Vinyl Insulated-Funnel Entry ...
Regular price
$1,091.91
Unit price
Description
Description

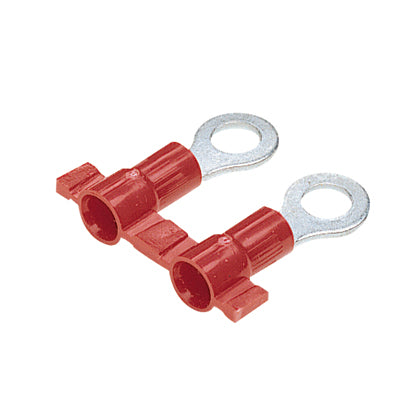

Panduit Pan-Term Reel Smart Terminal, Type PV-RN, Solid/Stranded Conductor, 22 to 18 AWG Conductor, #4 Stud, 0.74 in Length, Butted Seam/Funnel Entry/Insulation Support Barrel, Narrow Ring Tongue, 0.21 in W x 0.03 in THK Tongue, 600 VAC, 1/4 in L Wire Strip, 0.2 in Clearance, 221 deg F, Copper, Tin Plated, Red
Features + Benefits
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Without insulation
Panduit Panduit PV18-4RNB-3K | Ring Terminal, Vinyl Insulated-Funnel Entry | UPC - 07498380346 Key Specs
| Stud Hole Size (In.) | 1/8 |
| Stud Hole Size (mm) | 3 |
| Stud Size | #4 |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #18 |
| Maximum Copper Conductor Size (AWG STR) | #18 |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Wire Strip Length (In.) | 0.25 |
| Wire Strip Length (mm) | 6.4 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
Panduit Panduit PV18-4RNB-3K | Ring Terminal, Vinyl Insulated-Funnel Entry | UPC - 07498380346 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PV18-4RNB-3K Product Page | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
| Part Drawings | RING TERMINALS, 2 PC. VINYL INSULATED, #22-18 | Download and View |
