Brand: Panduit
|
SKU:
PAN-PV18-56RB-2K
Panduit PV18-56RB-2K | Ring Terminal, Vinyl Insulated-Funnel Entry | UPC - 07498370536
Regular price
$1,057.88
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV18-56RB-2K | Ring Terminal, Vinyl Insulated-Funnel Entry ...
Regular price
$1,057.88
Unit price
Brand: Panduit
|
SKU:
PAN-PV18-56RB-2K
Regular price
$1,057.88
Unit price
Shipping calculated at checkout.
Description
Description

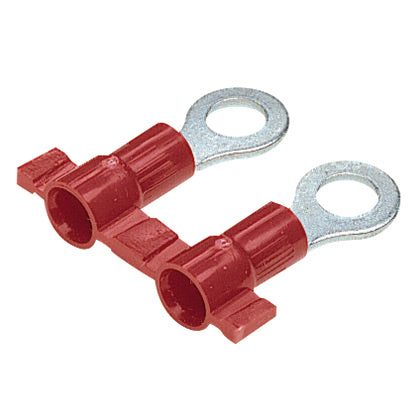

Panduit Pan-Term Reel Smart Terminal, Type PV-RB, Solid/Stranded Conductor, 22 to 18 AWG Conductor, 5/16 in Stud, 1.06 in Length, Insulation Support/Funnel Entry Barrel, Ring Tongue, 0.46 in W x 0.03 in THK Tongue, 600 VAC, 1/4 in L Wire Strip, 0.38 in Clearance, 221 deg F, Copper, Tin Plated, Red
Features + Benefits
- Insulug type YAE-N nylon insulated terminals are designed with a multi finger insulation grip for paper, EPR and other elastic or hard to grip insulations
- EPR and other elastic or hard to grip Insulations
- The metal fingers firmly grip the insulation providing superior holding characteristics, cable support and strain relief
- Type YAE-N terminals are rated 105 deg C and meet military standard AS25036 Class 2 and SAE-AS7928 requirements
- Multi-finger insulation grip - Provides superior insulation holding characteristics
- Especially on epr and other elastic type insulations
- Brazed seam provides stronger more durable termination
- Manufactured of pure electrolytic copper provides maximum conductivity, low resistance and ductility for excellent crimp forming properties, deep V groove
- Inner barrel serrations, provide optimum conductivity, reliability and holding power, smooth funnel entry - easy wire insertion
Panduit PV18-56RB-2K | Ring Terminal, Vinyl Insulated-Funnel Entry | UPC - 07498370536 Key Specs
| Stud Hole Size (In.) | 33/100 |
| Stud Hole Size (mm) | 8.4 |
| Stud Size | 5/16" |
| Insulation Material | vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #18 |
| Maximum Copper Conductor Size (AWG STR) | #18 |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Wire Strip Length (In.) | 0.25 |
| Wire Strip Length (mm) | 6.3 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
Panduit PV18-56RB-2K | Ring Terminal, Vinyl Insulated-Funnel Entry | UPC - 07498370536 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PV18-4RNB-3K Product Page | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
| Part Drawings | RING TERMINALS, 2 PC. VINYL INSULATED, #22-18 | Download and View |
Panduit PV18-56RB-2K | Ring Terminal, Vinyl Insulated-Funnel Entry | UPC - 07498370536 Environmental Information
| Panduit's RoHS Statement | Download and View |
