Brand: Panduit
|
SKU:
10044902
Panduit PV18-56RX-LY | Ring Terminal, Vinyl Expanded Insulation | UPC - 07498312171
Regular price
$50.93
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV18-56RX-LY | Ring Terminal, Vinyl Expanded Insulation | U...
Regular price
$50.93
Unit price
Description
Description

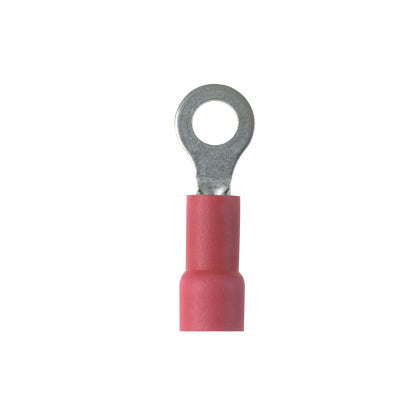

Ring Terminal, 22 – 18 AWG, 5/16" stud size, vinyl insulated, expanded insulation for large wire O.D.
Panduit Panduit PV18-56RX-LY | Ring Terminal, Vinyl Expanded Insulation | UPC - 07498312171 Key Specs
| Note | PV18-56RX-LY replaces PV18-56RX-CY |
| Stud Size | 5/16" |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #18 |
| Maximum Copper Conductor Size (AWG STR) | #18 |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Wire Strip Length (In.) | 0.31 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | C22.2 No. 65, UL 486A - UL 486B |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Funnel |
Panduit Panduit PV18-56RX-LY | Ring Terminal, Vinyl Expanded Insulation | UPC - 07498312171 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PV18-4RX-CY Product Page | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit Panduit PV18-56RX-LY | Ring Terminal, Vinyl Expanded Insulation | UPC - 07498312171 Environmental Information
| Panduit's RoHS Statement | Download and View |
