Brand: Panduit
|
SKU:
252210-EA

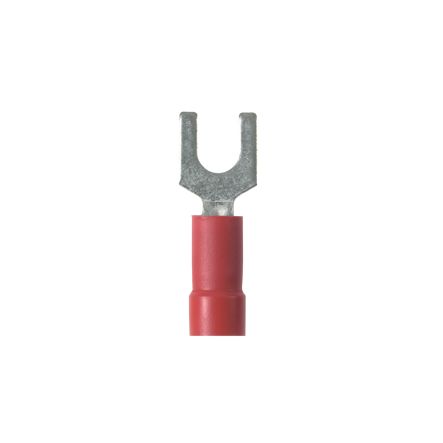

Panduit PV18-6F-MY | Pan-Term PV18-6F-MY Fork Terminal, Red, Vinyl, 16-22 AWG, #6 Stud, PK1000
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV18-6F-MY | Pan-Term PV18-6F-MY Fork Terminal, Red, Vinyl,...
Regular price
$1.46
Unit price
Description
Description
Panduit PV18-6F-MY | Pan-Term PV18-6F-MY Fork Terminal, Red, Vinyl, 16-22 AWG, #6 Stud, PK1000
Fork Terminal, vinyl insulated, funnel entry, 22- 16 AWG, #6 stud size, bulk package.
Panduit PV18-6F-MY - TERMINAL-FORK - FORK TERMINAL, VINYL INSULATED
Specifications
Specifications
Panduit - PV18-6F-MY - Product Categories
- Wire Termination
- Fork Terminals
Panduit - PV18-6F-MY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PV18-6F-MY |
| Item Description | Pan-Term PV18-6F-MY Fork Terminal, Red, Vinyl, 16-22 AWG, #6 Stud, PK1000 |
| Fork Type | Standard |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #16 |
| Maximum Copper Conductor Size (AWG STR) | #16 |
| Maximum Copper Conductor Size (AWG) | #16 |
| Maximum Wire Size (AWG) | #16 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Stud Size | #6 |
| Wire Strip Length (In.) | 5/16 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Funnel |
| Barrel Length (In.) | 0.43 |
| Barrel Length (mm) | 10.9 |
| Flammability Rating | UL94V-0 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Seam Type | Brazed |
| Maximum Wire Insulation Diameter (In.) | 0.15 |
| Maximum Wire Insulation Diameter (mm) | 3.8 |
| Stud Hole Size (In.) | #6 |
| Stud Hole Size (mm) | 3.5 |
| Overall Length (In.) | 0.86 |
| Overall Length (mm) | 21.8 |
| Overall Width (In.) | 0.3 |
| Overall Width (mm) | 7.6 |
| Tongue Length (In.) | 0.43 |
| Tongue Length (mm) | 10.9 |
| Sub Brand | Pan-Term |
| Tongue Thickness (In.) | 0.03 |
| Tongue Thickness (mm) | 0.8 |
| Tongue Width (In.) | 0.3 |
| Tongue Width (mm) | 7.6 |
| Packaging Type | Box |
| Product Type | Ring Terminal |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
Panduit - PV18-6F-MY - Package Information
| UPC | 07498341506 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.0482 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
