Brand: Panduit
|
SKU:
10044923-MOS

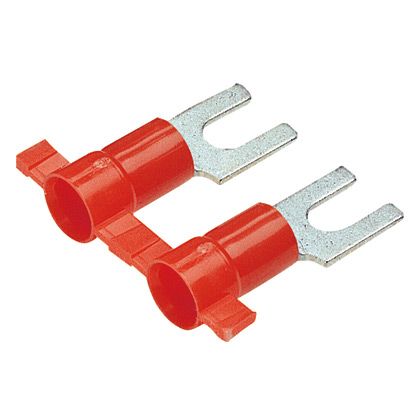

Panduit PV18-6FB-3K | Reel Smart PV18-6FB-3K Fork Terminal, Red, Vinyl, 18-22 AWG, #6 Stud, PK3000
Regular price
$930.98
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV18-6FB-3K | Reel Smart PV18-6FB-3K Fork Terminal, Red, Vi...
Regular price
$930.98
Unit price
Brand: Panduit
|
SKU:
10044923-MOS
Regular price
$930.98
Unit price
Shipping calculated at checkout.
Description
Description
Panduit PV18-6FB-3K | Reel Smart PV18-6FB-3K Fork Terminal, Red, Vinyl, 18-22 AWG, #6 Stud, PK3000
Fork Terminal, vinyl insulated, funnel entry, plastic insulation crimp, 22 - 18 AWG, #6 stud size.
Specifications
Specifications
Panduit - PV18-6FB-3K - Product Categories
- Wire Termination
- Fork Terminals
Panduit - PV18-6FB-3K - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PV18-6FB-3K |
| Item Description | Reel Smart PV18-6FB-3K Fork Terminal, Red, Vinyl, 18-22 AWG, #6 Stud, PK3000 |
| Fork Type | Standard |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #18 |
| Maximum Copper Conductor Size (AWG STR) | #18 |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Stud Size | #6 |
| Wire Strip Length (In.) | 1/4 |
| Wire Strip Length (mm) | 6.4 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Funnel Entry |
| Flammability Rating | UL94V-0 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Seam Type | Butted |
| Maximum Wire Insulation Diameter (In.) | 0.15 |
| Maximum Wire Insulation Diameter (mm) | 3.8 |
| Stud Hole Size (In.) | #6 |
| Stud Hole Size (mm) | 3.5 |
| Overall Length (In.) | 0.78 |
| Overall Length (mm) | 19.8 |
| Overall Width (In.) | 0.3 |
| Overall Width (mm) | 7.6 |
| Tongue Length (In.) | 0.39 |
| Tongue Length (mm) | 9.9 |
| Sub Brand | Reel Smart |
| Tongue Thickness (In.) | 0.03 |
| Tongue Thickness (mm) | 0.8 |
| Tongue Width (In.) | 0.3 |
| Tongue Width (mm) | 7.6 |
| Packaging Type | Reel |
| Product Type | Fork Terminal |
| For Use With | Crimp press with CA9 (CD9-1A) or CA-800EZ (CD-800-1) applicator |
| Part Features | Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time. Fork design provides for fast and easy installation, without the need to remove fastener. Insulation support helps to prevent wire damage in bending applications. |
Brand Name - PV18-6FB-3K - Package Information
| UPC | 07498380440 |
|---|---|
| Standard Package Quantity | 3000 |
| Standard Package Volume (cf) | 0.9208 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
