Brand: Panduit
|
SKU:
10044860

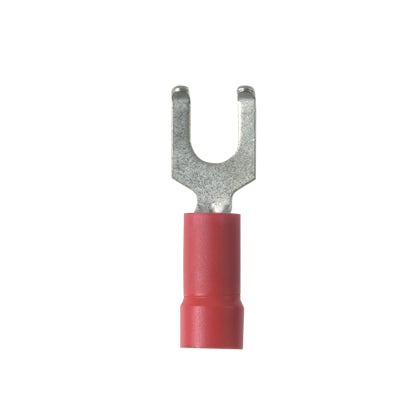

Panduit PV18-6FF-CY | Loose Piece Terminal | UPC - 07498369177
Regular price
$98.95
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV18-6FF-CY | Loose Piece Terminal | UPC - 07498369177
Regular price
$98.95
Unit price
Description
Description
Panduit Pan-Term Fork Terminal, Loose Piece, Series: PV-FF, Stranded Copper Conductor, 22 to 16 AWG Conductor, #6 Stud, 0.87 in Length, Brazed Seam/Funnel Entry Barrel, Flanged Fork Tongue, 0.28 in W x 0.032 in THK Tongue, 600 VAC, 5/16 in L Wire Strip, 0.15 in Dia Vinyl Insulation, 0.19 in Clearance, 221 deg F, Copper, Tin Plated, Red
- Type TN-F, nylon insulated fork tongue terminal has the same high quality as the TN
- It is designed to meet the heavy duty requirements of industrial and utility applications
- TN-F provides high dielectric strength and stability in oily conditions
- Fork tongue provides faster and easier installation by permitting insertion under the screw head without completely removing it
- For Y10D, Y10-22 non-ratchet hand crimper plier and MRE1022NV, MR8-83, MR18 ratchet crimper
Panduit Panduit PV18-6FF-CY | Loose Piece Terminal | UPC - 07498369177 Key Specs
| Note | PV18-6FF-CY replaces PV18-6FF-C |
| Fork Type | Flanged Fork |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #16 |
| Maximum Copper Conductor Size (AWG STR) | #16 |
| Maximum Copper Conductor Size (AWG) | #16 |
| Maximum Wire Size (AWG) | #16 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Stud Size | #6 |
| Wire Strip Length (In.) | 0.31 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | CSA certified C22.2 No.65,UL Listed UL486A-486B |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
Panduit Panduit PV18-6FF-CY | Loose Piece Terminal | UPC - 07498369177 Environmental Information
| Panduit's RoHS Statement | Download and View |
