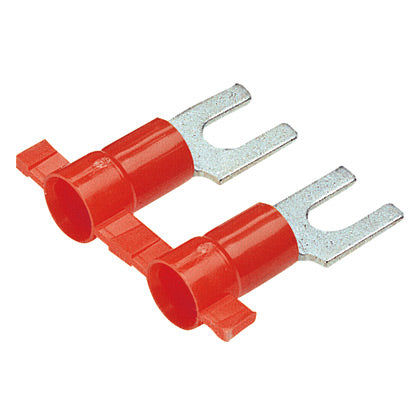

Panduit PV18-6FNB-3K | Reel Smart Fork Terminal, Narrow, Red, Vinyl, 18-22 AWG, #6 Stud
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV18-6FNB-3K | Reel Smart Fork Terminal, Narrow, Red, Vinyl...
Description
Description
Upgrade your electrical system with our durable and reliable fork terminals. The vinyl insulation provides protection, while the narrow design ensures a secure fit for various stud sizes.
Fork Terminal, vinyl insulated, funnel entry, plastic insulation crimp, 22 - 18 AWG wire range, #6 stud size.
Panduit Pan-Term Reel Smart Fork Terminal, Reel Fed, Series: PV-FNB, Stranded Copper Conductor, 22 to 18 AWG Conductor, #6 Stud, 0.78 in Length, Butted Seam/Funnel Entry Barrel, Narrow Fork Tongue, 0.25 in W x 0.03 in THK Tongue, 600 VAC, 1/4 in L Wire Strip, 0.15 in Dia Vinyl Insulation, 0.2 in Clearance, 221 deg F, Copper, Tin Plated, Red
Panduit - PV18-6FNB-3K - Features
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Fork design provides for fast and easy installation, without the need to remove fastener
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Fork design provides for fast and easy installation, without the need to remove fastener
- Insulation support helps to prevent wire damage in bending applications
- Maximum insulation temperature 221F (105C)
- UL and CSA rated up 600 V per UL 486
Specifications
Specifications
Panduit - PV18-6FNB-3K - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PV18-6FNB-3K |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Fork Type | Narrow Fork |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #18 |
| Maximum Copper Conductor Size (AWG STR) | #18 |
| Maximum Copper Conductor Size (AWG) | #18 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Wire Size (AWG) | 18 |
| Minimum Wire Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Stud Size | #6 |
| Wire Strip Length (In.) | 1/4 |
| Wire Strip Length (mm) | 6.4 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| UPC | 07498380365 |
