Panduit PV18-6LF-E | Loose Piece Forks | UPC - 07498336365
Regular price
$84.42
Unit price
Brand: Panduit
|
SKU:
10044791
Regular price
$84.42
Unit price
Description
Description

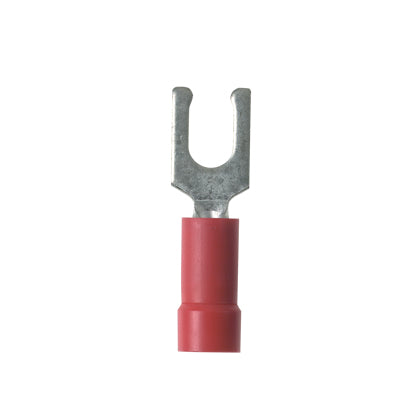

Locking Fork Terminal, vinyl insulated, funnel entry, 22- 18 AWG, #6 stud size, convenience package.
Panduit Panduit PV18-6LF-E | Loose Piece Forks | UPC - 07498336365 Key Specs
| Fork Type | Locking Fork |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #18 |
| Maximum Copper Conductor Size (AWG STR) | #18 |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Stud Size | #6 |
| Wire Strip Length (In.) | 0.31 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | UL Listed UL486A-486B ; CSA Certified C22.2 No.65 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
Panduit Panduit PV18-6LF-E | Loose Piece Forks | UPC - 07498336365 Data Sheets
| Cross References | Cross Reference - Obsolete and Replacementnew | Download and View |
| Selection Guides | Selection Guide - WW-TMFL05 New Convenience Pack Terminals2 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit Panduit PV18-6LF-E | Loose Piece Forks | UPC - 07498336365 Environmental Information
| Panduit's RoHS Statement | Download and View |
