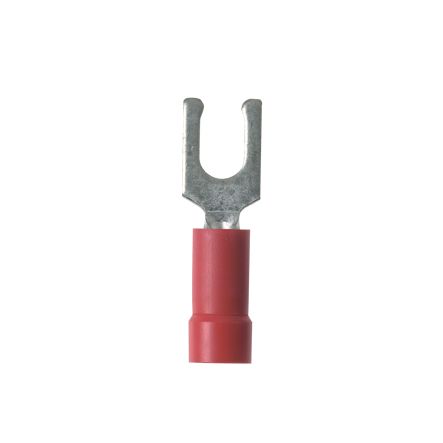

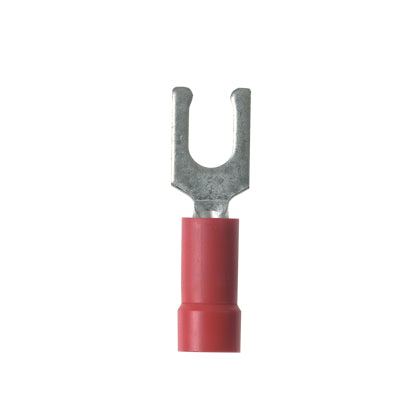

Panduit PV18-6LF-MY | Pan-Term Fork Terminal, Red, Vinyl, 18-22 AWG...
Description
Description
Our one-piece, vinyl-insulated design make installations quick and easy with our locking fork terminal. Ensure a reliable connection with a secure locking mechanism.
Panduit Pan-Term Fork Terminal, Loose Piece, Series: PV-LF, Stranded Copper Conductor, 22 to 18 AWG Conductor, #6 Stud, 0.9 in Length, Brazed Seam/Funnel Entry Barrel, Locking Fork Tongue, 0.27 in W x 0.03 in THK Tongue, 600 VAC, 5/16 in L Wire Strip, 0.15 in Dia Vinyl Insulation, 0.22 in Clearance, 221 deg F, Copper, Tin Plated, Red
Panduit - PV18-6LF-MY - Features
- The type TN-F nylon insulated fork tongue terminal has the same high quality as the TN
- It is designed to meet the heavy duty requirements of industrial and utility applications
- The TN-F provides high dielectric strength and stability in oily conditions
- The TN-F is identical to the TN with the addition of a fork tongue which allows installation without complete removal of its supporting screw
- Fork tongue provides faster and easier installation by permitting insertion under the screw head without completely removing it
- For Y10D, Y10-22 non-ratcheting and MR8-83, MR18 ratcheting installation tooling
Specifications
Specifications
Panduit - PV18-6LF-MY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PV18-6LF-MY |
| Fork Type | Locking Fork |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #18 |
| Maximum Copper Conductor Size (AWG STR) | #18 |
| Maximum Copper Conductor Size (AWG) | #18 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Wire Size (AWG) | 18 |
| Minimum Wire Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Stud Size | #6 |
| Wire Strip Length (In.) | 5/16 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| UPC | 07498341623 |
