Brand: Panduit
|
SKU:
10044792

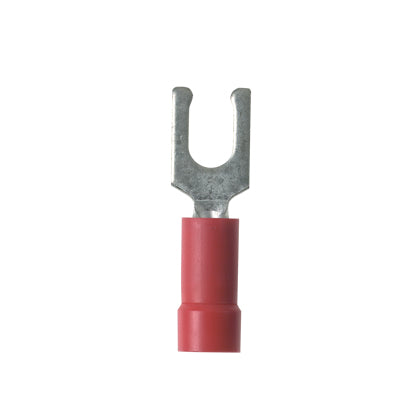

Panduit PV18-6LFW-MY | Loose Piece Forks | UPC - 07498341624
Regular price
$314.06
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV18-6LFW-MY | Loose Piece Forks | UPC - 07498341624
Regular price
$314.06
Unit price
Description
Description
Panduit Pan-Term Fork Terminal, Loose Piece, Series: PV-LFW, Stranded Copper Conductor, 22 to 18 AWG Conductor, #6 Stud, 0.9 in Length, Brazed Seam/Funnel Entry/Insulation Support Barrel, Locking Fork Wide Tongue, 0.29 in W Tongue, 600 VAC, 0.31 in L Wire Strip, 0.15 in Vinyl Insulation, 221 deg F, Copper, Tin Plated, Red
- Flange design provides extra secure connection on a variety of applications
- Fork design provides for fast and easy installation, without the need to remove fastener
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Non-expanded insulation
Panduit Panduit PV18-6LFW-MY | Loose Piece Forks | UPC - 07498341624 Key Specs
| Note | PV18-6LFW-MY replaces PV18-6LFW-M |
| Fork Type | Locking Fork |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #18 |
| Maximum Copper Conductor Size (AWG STR) | #18 |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Stud Size | #6 |
| Wire Strip Length (In.) | 0.31 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | UL Listed UL486A-486B ; CSA Certified C22.2 No.65 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
Panduit Panduit PV18-6LFW-MY | Loose Piece Forks | UPC - 07498341624 Environmental Information
| Panduit's RoHS Statement | Download and View |
