Brand: Panduit
|
SKU:
10044905

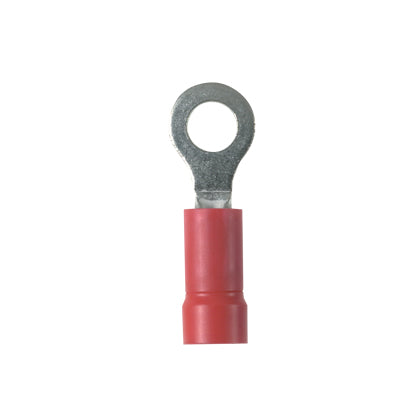

Panduit PV18-6R-E | Ring Terminal-Funnel Entry | UPC - 07498336361
Regular price
$16.63
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV18-6R-E | Ring Terminal-Funnel Entry | UPC - 07498336361
Regular price
$16.63
Unit price
Description
Description
Ring Terminal, 22 – 18 AWG, #6 stud size, vinyl insulated, funnel entry, convenience package.
Panduit Panduit PV18-6R-E | Ring Terminal-Funnel Entry | UPC - 07498336361 Key Specs
| Stud Hole Size (In.) | 3/20 |
| Stud Hole Size (mm) | 3.8 |
| Stud Size | #6 |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #18 |
| Maximum Copper Conductor Size (AWG STR) | #18 |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Wire Strip Length (In.) | 0.31 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
Panduit Panduit PV18-6R-E | Ring Terminal-Funnel Entry | UPC - 07498336361 Data Sheets
| Cross References | Cross Reference - Obsolete and Replacementnew | Download and View |
| Selection Guides | Selection Guide - WW-TMFL05 New Convenience Pack Terminals2 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit Panduit PV18-6R-E | Ring Terminal-Funnel Entry | UPC - 07498336361 Environmental Information
| Panduit's RoHS Statement | Download and View |
