Brand: Panduit
|
SKU:
PV18-6RB-3K
Panduit PV18-6RB-3K | Ring Terminal on Reel | UPC - 07498380348
Regular price
$471.73
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV18-6RB-3K | Ring Terminal on Reel | UPC - 07498380348
Regular price
$471.73
Unit price
Description
Description

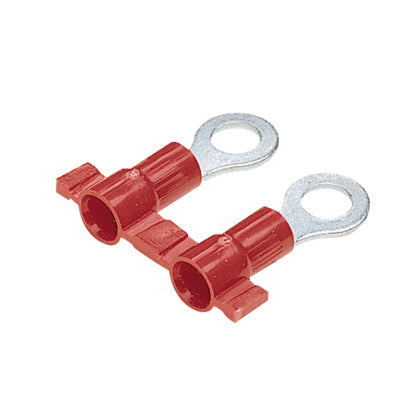

Panduit Pan-Term Reel Smart Terminal, Type PV-RB, Solid/Stranded Conductor, 22 to 18 AWG Conductor, #6 Stud, 0.78 in Length, Insulation Support/Funnel Entry Barrel, Ring Tongue, 0.25 in W x 0.03 in THK Tongue, 600 VAC, 1/4 in L Wire Strip, 0.2 in Clearance, 221 deg F, Copper, Tin Plated, Red
Features + Benefits
- Insulation support helps to prevent wire damage in bending applications
- Ring tongue design assures a secure connection in high vibration applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Internal barrel serrations assure good wire contact and maximum tensile strength
Panduit PV18-6RB-3K | Ring Terminal on Reel | UPC - 07498380348 Key Specs
| Stud Size | #6 |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #18 |
| Maximum Copper Conductor Size (AWG STR) | #18 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Wire Strip Length (In.) | 1/4 |
| Wire Strip Length (mm) | 6.4 |
| Standards Met | UL 486A/B, and CSA 22.2 No.65 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Funnel |
| Flammability Rating | UL94V-0 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
Panduit PV18-6RB-3K | Ring Terminal on Reel | UPC - 07498380348 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PV18-4RNB-3K Product Page | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
| Part Drawings | RING TERMINALS, 2 PC. VINYL INSULATED, #22-18 | Download and View |
Panduit PV18-6RB-3K | Ring Terminal on Reel | UPC - 07498380348 Environmental Information
| Panduit's RoHS Statement | Download and View |
