Brand: Panduit
|
SKU:
PV18-6RX-MY
Panduit PV18-6RX-MY | Pan-Term PV18-6RX-MY Ring Terminal
Regular price
$366.00
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV18-6RX-MY | Pan-Term PV18-6RX-MY Ring Terminal
Regular price
$366.00
Unit price
Description
Description

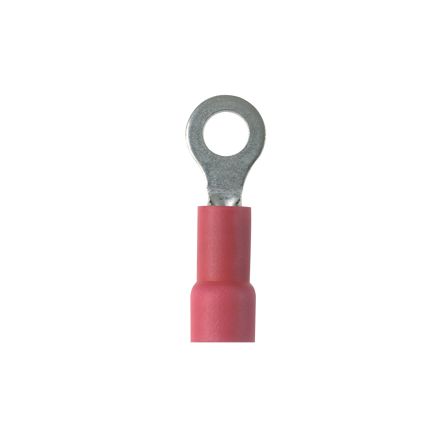

Panduit PV18-6RX-MY | Pan-Term PV18-6RX-MY Ring Terminal
Ring Terminal, 22 – 18 AWG, #6 stud size, vinyl insulated, expanded insulation for large wire O.D., bulk package.
Panduit - PV18-6RX-MY - Features
- Ring Terminal, 22 - 18 AWG, #6 stud size, vinyl insulated, expanded insulation for large wire O.D.
- Expanded wire entry designed to accommodate wire with a larger insulation thickness
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- UL Flammability UL 94V-0, maximum insulation temperature 221F (105C)
- Internal barrel serrations assure good wire contact and maximum tensile strength
- UL and CSA rated up 600 V per UL 486
Specifications
Specifications
Panduit - PV18-6RX-MY - Product Categories
- Wire Termination
- Ring Terminals
Panduit - PV18-6RX-MY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PV18-6RX-MY |
| Item Description | Pan-Term PV18-6RX-MY Ring Terminal |
| Stud Hole Size (In.) | #6 |
| Stud Hole Size (mm) | 3.5 |
| Stud Size | #6 |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Wire Strip Length (In.) | 5/16 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Funnel |
| Barrel Length (In.) | 0.38 |
| Barrel Length (mm) | 9.6 |
| Flammability Rating | UL94V-0 |
| Insulation Diameter (In.) | 0.17 |
| Insulation Diameter (mm) | 4.3 |
| Maximum Operating Temperature (°C) | 75 |
| Maximum Operating Temperature (°F) | 167 |
| Maximum Wire Insulation Diameter (In.) | 0.17 |
| Maximum Wire Insulation Diameter (mm) | 4.3 |
| Outer Diameter (In.) | 0.17 |
| Outer Diameter (mm) | 4.3 |
| Sub Brand | Pan-Term |
| Overall Length (In.) | 0.89 |
| Overall Length (mm) | 22.6 |
| Overall Width (In.) | 0.25 |
| Overall Width (mm) | 6.4 |
| Tongue Length (In.) | 0.5 |
| Tongue Length (mm) | 12.7 |
| Tongue Thickness (In.) | 0.03 |
| Tongue Thickness (mm) | 0.8 |
| Tongue Width (In.) | 0.25 |
| Tongue Width (mm) | 6.4 |
| Packaging Type | Box |
| Product Type | Ring Terminal |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Part Features | • Expanded wire entry designed to accommodate wire with a larger insulation thickness • Ring tongue design assures a secure connection in high vibration applications • Insulation support helps to prevent wire damage in bending applications • Internal barrel serrations assure good wire contact and maximum tensile strength |
Panduit - PV18-6RX-MY - Package Information
| UPC | 07498341698 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.0475 |
| Standard. Ctn. Quantity | 0 |
| Standard. Ctn. Volume (cf) | 0.0000 |
Documents and Downloads
Documents and Downloads
