Brand: Panduit
|
SKU:
PV18-8F-CY

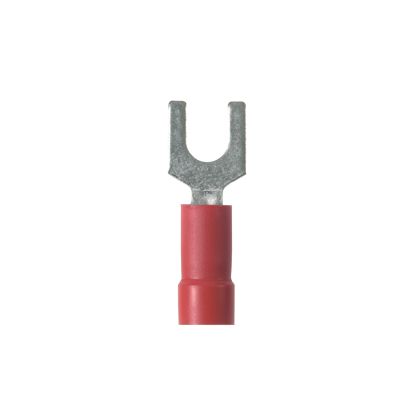

Panduit PV18-8F-CY | Pan-Term Fork Terminal, Red, Vinyl, 16-22 AWG, #8 Stud, PK100
Regular price
$78.33
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV18-8F-CY | Pan-Term Fork Terminal, Red, Vinyl, 16-22 AWG,...
Regular price
$78.33
Unit price
Description
Description
Panduit PV18-8F-CY | Pan-Term Fork Terminal, Red, Vinyl, 16-22 AWG, #8 Stud, PK100
Our fork terminal design ensures consistent quality and protects wires during installation for a reliable, long-lasting connection.
Specifications
Specifications
Panduit - PV18-8F-CY - Specifications
| Fork Type | Standard |
|---|---|
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #16 |
| Maximum Copper Conductor Size (AWG STR) | #16 |
| Maximum Copper Conductor Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Wire Size (AWG) | 16 |
| Minimum Wire Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1.5 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Stud Size | #8 |
| Wire Strip Length (In.) | 5/16 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
Panduit - PV18-8F-CY - Package Includes
| UPC | 07498369469 |
|---|---|
| Std. Pkg. Qty. | 100 |
| Std. Pkg. Volume (cf) | 0.0060 |
| Std. Ctn. Qty. | 500 |
| Std. Ctn. Volume (cf) | 0.0298 |
Panduit - PV18-8F-CY - Videos
| Panduit PV18-8F-CY Video | Click to View |
|---|
