Brand: Panduit
|
SKU:
PAN-PV18-8F-MY
Panduit PV18-8F-MY | Loose Piece Forks | UPC - 07498341701
Regular price
$290.23
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV18-8F-MY | Loose Piece Forks | UPC - 07498341701
Regular price
$290.23
Unit price
Brand: Panduit
|
SKU:
PAN-PV18-8F-MY
Regular price
$290.23
Unit price
Shipping calculated at checkout.
Description
Description

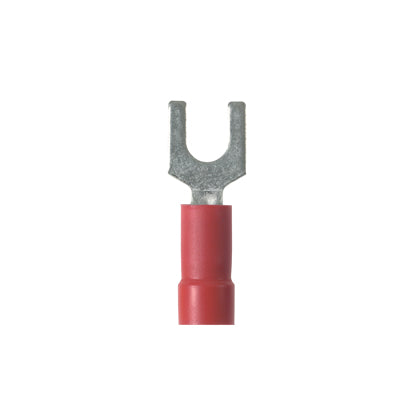

Panduit Pan-Term Fork Terminal, Loose Piece, Series: PV-F, Stranded Copper Conductor, 22 to 16 AWG Conductor, #8 Stud, 0.93 in Length, Brazed Seam/Funnel Entry Barrel, Fork Tongue, 0.32 in W x 0.032 in THK Tongue, 600 VAC, 5/16 in L Wire Strip, 0.15 in Dia Vinyl Insulation, 1/4 in Clearance, 221 deg F, Copper, Tin Plated, Red
Features + Benefits
- The type TN-F nylon insulated fork tongue terminal has the same high quality as the TN
- It is designed to meet the heavy duty requirements of industrial and utility applications
- The TN-F provides high dielectric strength and stability in oily conditions
- The TN-F is identical to the TN with the addition of a fork tongue which allows installation without complete removal of its supporting screw
- Fork tongue provides faster and easier installation by permitting insertion under the screw head without completely removing it
- For Y10D, Y10-22 non-ratcheting and MR8-83, MR18 ratcheting installation tooling
Panduit PV18-8F-MY | Loose Piece Forks | UPC - 07498341701 Key Specs
| Note | PV18-8F-MY replaces PV18-8F-M |
| Fork Type | Standard |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #16 |
| Maximum Copper Conductor Size (AWG STR) | #16 |
| Maximum Copper Conductor Size (AWG) | #16 |
| Maximum Wire Size (AWG) | #16 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1.5 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Stud Size | #8 |
| Wire Strip Length (In.) | 0.31 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | UL Listed UL486A-486B ; CSA Certified C22.2 No.65 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
Panduit PV18-8F-MY | Loose Piece Forks | UPC - 07498341701 Data Sheets
| Selection Guides | Terminal Tools Selection Guide | Download and View |
| Part Drawings | 2 PC. Vinyl Insulated, #22-18 Barrel, Forks | Download and View |
Panduit PV18-8F-MY | Loose Piece Forks | UPC - 07498341701 Environmental Information
| Panduit's RoHS Statement | Download and View |
