Brand: Panduit
|
SKU:
PAN-PV18-8FB-3K

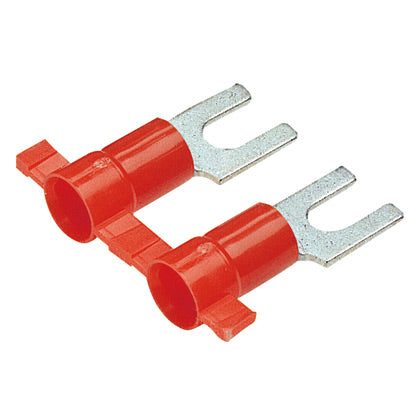

Panduit PV18-8FB-3K | Terminals on a Reel | UPC - 07498380441
Regular price
$1,101.66
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV18-8FB-3K | Terminals on a Reel | UPC - 07498380441
Regular price
$1,101.66
Unit price
Brand: Panduit
|
SKU:
PAN-PV18-8FB-3K
Regular price
$1,101.66
Unit price
Shipping calculated at checkout.
Description
Description
Panduit Pan-Term Reel Smart Fork Terminal, Reel Fed, Series: PV-FB, Stranded Copper Conductor, 22 to 18 AWG Conductor, #8 Stud, 0.84 in Length, Butted Seam/Funnel Entry Barrel, Fork Tongue, 0.32 in W x 0.03 in THK Tongue, 600 VAC, 1/4 in L Wire Strip, 0.15 in Dia Vinyl Insulation, 0.23 in Clearance, 221 deg F, Copper, Tin Plated, Red
Features + Benefits
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Snap-in place for secure connection
- Fork design provides for fast and easy installation, without the need to remove fastener
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
Panduit PV18-8FB-3K | Terminals on a Reel | UPC - 07498380441 Key Specs
| Fork Type | Standard |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #18 |
| Maximum Copper Conductor Size (AWG STR) | #18 |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Stud Size | #8 |
| Wire Strip Length (In.) | 0.42 |
| Wire Strip Length (mm) | 10.7 |
| Standards Met | UL Listed UL486A-486B ; CSA Certified C22.2 No.65 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
Panduit PV18-8FB-3K | Terminals on a Reel | UPC - 07498380441 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PV18-6FB-3K Product Page | Download and View |
| Part Drawings | Fork Terminals, 2 PC. Vinyl Insulated, #22-18, Continuous Reel | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit PV18-8FB-3K | Terminals on a Reel | UPC - 07498380441 Environmental Information
| Panduit's RoHS Statement | Download and View |
