Brand: Panduit
|
SKU:
PAN-PV18-8FF-CY
Panduit PV18-8FF-CY | Loose Piece Forks | UPC - 07498371212
Regular price
$96.61
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV18-8FF-CY | Loose Piece Forks | UPC - 07498371212
Regular price
$96.61
Unit price
Brand: Panduit
|
SKU:
PAN-PV18-8FF-CY
Regular price
$96.61
Unit price
Shipping calculated at checkout.
Description
Description

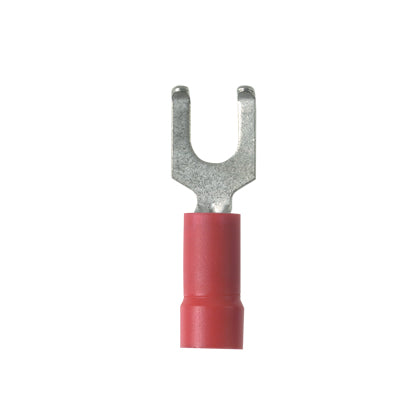

Panduit Pan-Term Fork Terminal, Loose Piece, Series: PV-FF, Stranded Copper Conductor, 22 to 16 AWG Conductor, #8 Stud, 0.94 in Length, Brazed Seam/Funnel Entry Barrel, Flanged Fork Tongue, 0.31 in W x 0.032 in THK Tongue, 600 VAC, 5/16 in L Wire Strip, 0.15 in Dia Vinyl Insulation, 0.23 in Clearance, 221 deg F, Copper, Tin Plated, Red
Features + Benefits
- Flange fork tongue design allows fast installation
- The flanges on the end of the fork terminal aid in preventing a slightly loose terminal from becoming fully disconnected from the screw
- Flanges make re-securing a loose terminal easier
- For Y10D, Y10-22 plier and MRE1022NV MR8-89-1 ratcheting installation tooling
Panduit PV18-8FF-CY | Loose Piece Forks | UPC - 07498371212 Key Specs
| Note | PV18-8FF-CY replaces PV18-8FF-C |
| Fork Type | Flanged Fork |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #16 |
| Maximum Copper Conductor Size (AWG STR) | #16 |
| Maximum Copper Conductor Size (AWG) | #16 |
| Maximum Wire Size (AWG) | #16 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Stud Size | #8 |
| Wire Strip Length (In.) | 0.31 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | UL Listed UL486A-486B ; CSA Certified C22.2 No.65 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
Panduit PV18-8FF-CY | Loose Piece Forks | UPC - 07498371212 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PN18-6FF-C Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - A4157405 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit PV18-8FF-CY | Loose Piece Forks | UPC - 07498371212 Environmental Information
| Panduit's RoHS Statement | Download and View |
