Panduit PV18-8LF-CY | Pan-Term Loose Piece Forks
Description
Description

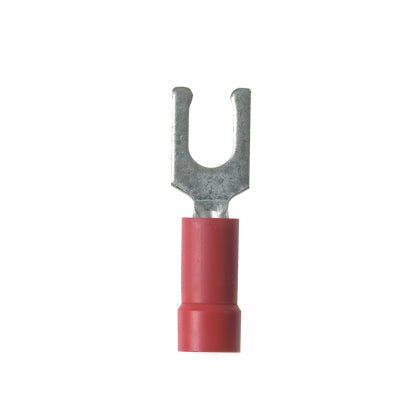

Our one-piece, vinyl-insulated design make installations quick and easy with our locking fork terminal. Ensure a reliable connection with a secure locking mechanism.
Panduit Pan-Term Fork Terminal, Insulated, Series: PV-LF, Solid/Stranded Copper Conductor, 22 to 18 AWG Conductor, #8 Stud, 0.97 in Length, Brazed Seam Barrel, Locking Fork Tongue, 0.29 in W x 0.03 in THK Tongue, 600 VAC, Specifications: 5/16 in L Wire Strip, 0.15 in Dia Max Vinyl Insulation, 1/4 in Clearance, Funnel Entry Barrel Configuration, 221 deg F, Copper, Tin Plated, Red
Panduit - PV18-8LF-CY - Features
- Locks in place for secure connection
- Fork design provides for fast and easy installation, without the need to remove fastener
- Insulation support helps to prevent wire damage in bending applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
Specifications
Specifications
Panduit - PV18-8LF-CY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PV18-8LF-CY |
| Fork Type | Locking Fork |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #18 |
| Maximum Copper Conductor Size (AWG STR) | #18 |
| Maximum Copper Conductor Size (AWG) | #18 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Wire Size (AWG) | 18 |
| Minimum Wire Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Stud Size | #8 |
| Wire Strip Length (In.) | 5/16 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| UPC | 07498369473 |
