Panduit PV18-8R-CY | Pan-Term Ring Terminal, Red, Vinyl, 16-22 AWG, #8 Stud, PK100
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV18-8R-CY | Pan-Term Ring Terminal, Red, Vinyl, 16-22 AWG,...
Description
Description
Ensure reliable, insulated connections with our ring terminal, designed for durability and secure performance in various electrical applications.

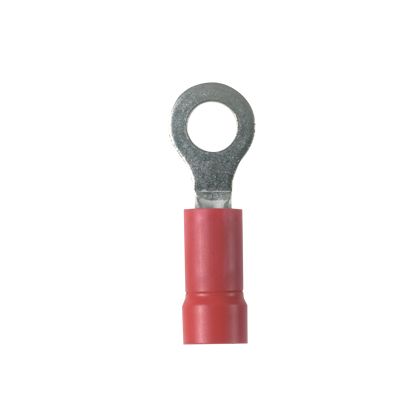

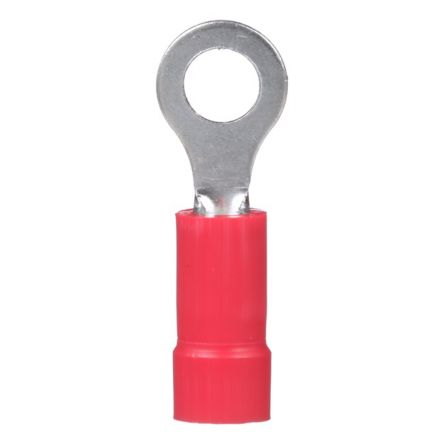

Ring Terminal, 22 - 18 AWG, #8 stud size, vinyl insulated, funnel entry.
Panduit Pan-Term Terminal, Type PV-R, Solid/Stranded Conductor, 22 to 18 AWG Conductor, #8 Stud, 0.91 in Length, Brazed Seam/Funnel Entry/Insulation Support Barrel, Ring Tongue, 0.31 in W x 0.03 in THK Tongue, 600 VAC, 5/16 in L Wire Strip, 0.26 in Clearance, 221 deg F, Copper, Tin Plated, Red
Panduit - PV18-8R-CY - Features
- Insulug type YAE-N nylon insulated terminals are designed with a multi finger insulation grip for paper, EPR and other elastic or hard to grip insulations
- The metal fingers firmly grip the insulation providing superior holding characteristics, cable support and strain relief
- Types YAE-G terminals are rated 105 deg C and meet military standard AS25036 class 2 and SAE-AS7928 requirements
- Multi-finger insulation grip - Provides superior insulation holding characteristics
- Especially on epr and other elastic type insulations
- Brazed seam provides stronger more durable termination
- Manufactured of pure electrolytic copper provides maximum conductivity, low resistance and ductility for excellent crimp forming properties
- Deep V groove, inner barrel serrations - Provide optimum conductivity, reliability and holding power
- Smooth funnel entry provides easy wire insertion
- Without inspection hole
- Insulation support helps to prevent wire damage in bending applications
- Ring tongue design assures a secure connection in high vibration applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- UL Flammability UL 94V-0, maximum insulation temperature 221F (105C)
- Internal barrel serrations assure good wire contact and maximum tensile strength
- UL and CSA rated up 600 V per UL 486
Specifications
Specifications
Panduit - PV18-8R-CY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PV18-8R-CY |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Stud Hole Size (In.) | #8 |
| Stud Hole Size (mm) | 4 |
| Stud Size | #8 |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG) | 18 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Wire Size (AWG) | 18 |
| Minimum Wire Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1.5 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Wire Strip Length (In.) | 5/16 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | cULus Listed 587H E52164, CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Funnel Entry |
| Flammability Rating | UL94V-0 |
| Maximum Operating Temperature (°C) | 105 |
| UPC | 07498369477 |
Panduit - PV18-8R-CY - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.90.4000 |
Panduit - PV18-8R-CY - Videos
| Panduit PV18-8R-CY Video 1 | Click to View |
|---|---|
| Panduit PV18-8R-CY Video 2 | Click to View |
