Panduit PV18-8RX-MY | Ring Terminal | UPC - 07498341742
Regular price
$362.38
Unit price
Brand: Panduit
|
SKU:
1011119
Regular price
$362.38
Unit price
Description
Description

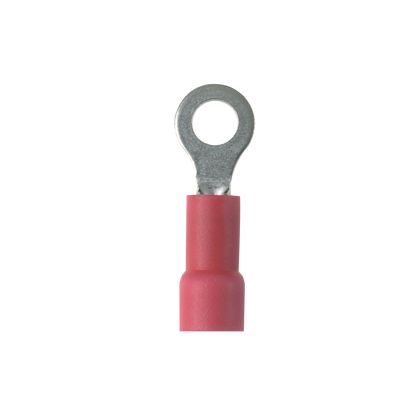

Panduit Pan-Term Terminal, Type PV-RX, Solid/Stranded Conductor, 22 to 18 AWG Conductor, #8 Stud, 0.97 in Length, Brazed Seam/Expanded Entry/Insulation Support Barrel, Ring Tongue, 0.31 in W x 0.03 in THK Tongue, 600 VAC, 5/16 in L Wire Strip, 0.27 in Clearance, 221 deg F, Copper, Tin Plated, Red
Features + Benefits
- Insulug type YAE-N nylon insulated terminals are designed with a multi finger insulation grip for paper, EPR and other elastic or hard to grip insulations
- EPR and other elastic or hard to grip Insulations
- The metal fingers firmly grip the insulation providing superior holding characteristics, cable support and strain relief
- Type YAE-N terminals are rated 105 deg C and meet military standard AS25036 Class 2 and SAE-AS7928 requirements
- Multi-finger insulation grip - Provides superior insulation holding characteristics
- Especially on epr and other elastic type insulations
- Brazed seam provides stronger more durable termination
- Manufactured of pure electrolytic copper provides maximum conductivity, low resistance and ductility for excellent crimp forming properties, deep V groove
- Inner barrel serrations, provide optimum conductivity, reliability and holding power, smooth funnel entry - easy wire insertion
Panduit PV18-8RX-MY Key Specs
| Note | PV18-8RX-MY replaces PV18-8RX-M |
| Stud Hole Size (In.) | 1/6 |
| Stud Hole Size (mm) | 4.3 |
| Stud Size | #8 |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #18 |
| Maximum Copper Conductor Size (AWG STR) | #18 |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Wire Strip Length (In.) | 0.31 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Funnel |
| Barrel Length (In.) | 0.4 |
| Barrel Length (mm) | 10.1 |
| Flammability Rating | UL 94 V-0 |
| Insulation Diameter (In.) | 0.17 |
| Insulation Diameter (mm) | 4.3 |
| Maximum Operating Temperature (°C) | 75 |
| Maximum Operating Temperature (°F) | 167 |
Panduit PV18-8RX-MY Data Sheets
| Part Drawings | Part Drawing - PDF - A4126905 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
