Brand: Panduit
|
SKU:
10044861
Panduit PV18-P47-E | Loose Piece Terminal | UPC - 07498336367
Regular price
$29.40
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV18-P47-E | Loose Piece Terminal | UPC - 07498336367
Regular price
$29.40
Unit price
Description
Description

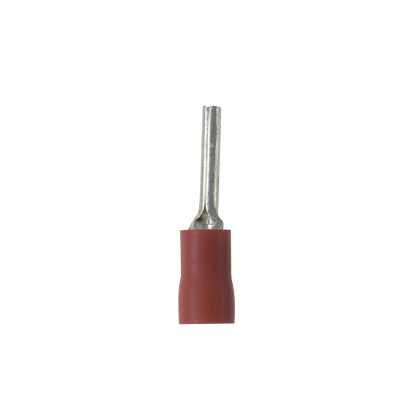

Pin Terminal, 22 18 AWG, vinyl insulated, .49 pin length, convenience package.
Panduit Panduit PV18-P47-E | Loose Piece Terminal | UPC - 07498336367 Key Specs
| Pin Length (In.) | 0.49 |
| Pin Length (mm) | 12.4 |
| Insulation Material | Vinyl |
| Maximum Wire Size (AWG) | 22 - 18 AWG |
| Wire Strip Length (In.) | 0.31 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | UL486A/B |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Brazed |
| Flammability Rating | UL94-V0 |
| Insulation Diameter (In.) | 0.15 |
| Insulation Diameter (mm) | 3.8 |
| Maximum Wire Insulation Diameter (In.) | 0.15 |
| Maximum Wire Insulation Diameter (mm) | 3.8 |
| Overall Length (In.) | 0.97 |
| Overall Length (mm) | 24.6 |
Panduit Panduit PV18-P47-E | Loose Piece Terminal | UPC - 07498336367 Data Sheets
| Selection Guides | Selection Guide - WW-TMFL05 New Convenience Pack Terminals2 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
| Part Drawings | Pin Terminal, Vinyl Insulated, Funnel Entry | Download and View |
Panduit Panduit PV18-P47-E | Loose Piece Terminal | UPC - 07498336367 Environmental Information
| Panduit's RoHS Statement | Download and View |
