Brand: Panduit
|
SKU:
PAN-PV18-P47-MY

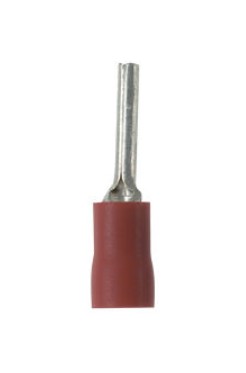

Panduit PV18-P47-MY | Vinyl Insulated Pin Terminal
Regular price
$447.70
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV18-P47-MY | Vinyl Insulated Pin Terminal
Regular price
$447.70
Unit price
Brand: Panduit
|
SKU:
PAN-PV18-P47-MY
Regular price
$447.70
Unit price
Shipping calculated at checkout.
Description
Description
Panduit PV18-P47-MY | Vinyl Insulated Pin Terminal
Ensure a secure connections with our insulated pin terminal , featuring a solid pin for easy crimping, protected insulation for bends, and consistent application for reliable performance.
Specifications
Specifications
Panduit - PV18-P47-MY - Specifications
| Pin Length (In.) | 0.49 |
|---|---|
| Pin Length (mm) | 12.4 |
| Pin Diameter (In.) | 0.07 |
| Pin Diameter (mm) | 1.8 |
| Insulation Material | Vinyl |
| Copper Conductor Size | 22-18 AWG |
| Wire Size | 22-18 AWG |
| Wire Strip Length (In.) | 5/16 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | UL486A/B |
| Maximum Voltage (V) | 600 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Brazed |
| Flammability Rating | UL 94 V-0 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Wire Insulation Diameter (In.) | 0.15 |
