Brand: Panduit | SKU: 10044882

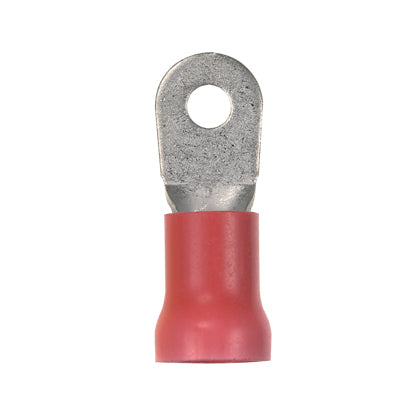

Panduit PV2-10RX-XY | Ring Terminal | UPC - 07498369486

$55.31

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Panduit Pan-Term Terminal, Type PV-RX, Stranded Conductor, 2 AWG Conductor, #10 Stud, 1.94 in Length, Brazed Seam/Expanded Entry/Insulation Support Barrel, Ring Tongue, 0.68 in W x 0.06 in THK Tongue, 600 VAC, 1/2 in L Wire Strip, 0.58 in Clearance, 221 deg F, Copper, Tin Plated, Red

Insulug type YAE-N nylon insulated terminals are designed with a multi finger insulation grip for paper, EPR and other elastic or hard to grip insulations
The metal fingers firmly grip the insulation providing superior holding characteristics, cable support and strain relief
Types YAE-G terminals are rated 105 deg C and meet military standard AS25036 class 2 and SAE-AS7928 requirements
Multi-finger insulation grip - Provides superior insulation holding characteristics
Especially on epr and other elastic type insulations
Brazed seam provides stronger more durable termination
Manufactured of pure electrolytic copper provides maximum conductivity, low resistance and ductility for excellent crimp forming properties
Deep V groove, inner barrel serrations - Provide optimum conductivity, reliability and holding power
Smooth funnel entry provides easy wire insertion

Panduit Panduit PV2-10RX-XY | Ring Terminal | UPC - 07498369486 Key Specs

Note	PV2-10RX-XY replaces PV2-10RX-X
Stud Hole Size (In.)	1/5
Stud Hole Size (mm)	5
Stud Size	#10
Insulation Material	Vinyl
Maximum Copper Conductor Size (AWG SOL)	#2
Maximum Copper Conductor Size (AWG STR)	#2
Maximum Copper Conductor Size (AWG)	#2
Maximum Wire Size (AWG)	#2
Minimum Wire Size (AWG)	#2
Minimum Copper Conductor Size (AWG SOL)	#2
Minimum Copper Conductor Size (AWG STR)	#2
Minimum Copper Conductor Size (AWG)	#2
Wire Strip Length (In.)	0.50
Wire Strip Length (mm)	12.7
Standards Met	UL Listed 587H E52164
Base Material	Copper
Maximum Voltage (V)	600
Maximum Voltage (kV)	0.6
Finish/Coating	Tin-Plated

Panduit Panduit PV2-10RX-XY | Ring Terminal | UPC - 07498369486 Environmental Information

Panduit's RoHS Statement

Download and View
