Panduit PV2-38R-TY | Ring Terminal | UPC - 07498342050
Regular price
$443.33
Unit price
Brand: Panduit
|
SKU:
10044888
Regular price
$443.33
Unit price
Description
Description

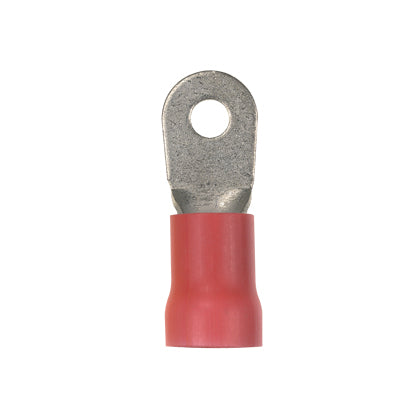

Ring Terminal, large wire, 2 AWG, 3/8" stud size, vinyl insulated, bulk package.
Panduit Panduit PV2-38R-TY | Ring Terminal | UPC - 07498342050 Key Specs
| Note | PV2-38R-TY replaces PV2-38R-T |
| Stud Hole Size (In.) | 39/100 |
| Stud Hole Size (mm) | 9.9 |
| Stud Size | 3/8" |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #2 |
| Maximum Copper Conductor Size (AWG STR) | #2 |
| Maximum Copper Conductor Size (AWG) | #2 |
| Maximum Wire Size (AWG) | #2 |
| Wire Strip Length (In.) | 0.50 |
| Wire Strip Length (mm) | 12.7 |
| Standards Met | UL Listed 587H E52164 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Funnel |
| Barrel Length (In.) | 0.81 |
| Barrel Length (mm) | 20.5 |
Panduit Panduit PV2-38R-TY | Ring Terminal | UPC - 07498342050 Data Sheets
| Part Drawings | Ring terminal, 2awg, vinyl insulated | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit Panduit PV2-38R-TY | Ring Terminal | UPC - 07498342050 Environmental Information
| Panduit's RoHS Statement | Download and View |
