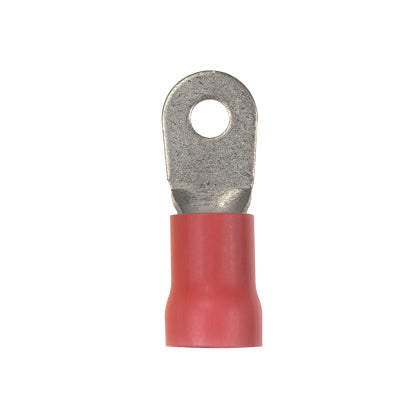

Panduit PV2-38R-XY | Ring Terminal | UPC - 07498369496
Regular price
$54.82
Unit price
Brand: Panduit
|
SKU:
10044890
Regular price
$54.82
Unit price
Description
Description
Panduit Pan-Term Terminal, Type PV-R, Stranded Conductor, 2 AWG Conductor, 3/8 in Stud, 1.96 in Length, Brazed Seam/Funnel Entry Barrel, Ring Tongue, 0.68 in W x 0.06 in THK Tongue, 600 VAC, 1/2 in L Wire Strip, 0.58 in Clearance, 221 deg F, Copper, Tin Plated, Red
Features + Benefits
- The type YAES-K, radiation resistant KYNAR insulated terminals are designed and have been tested to meet the requirements for class 1E critical circuits as set by the nuclear regulatory commission (NRC)
- Additional testing for compatibility under Loss of Coolant Accident (LOCA) conditions with Cross-Link Polyethylene (XLP) and HYPALOn insulations was completed successfully
- Compatibility with Ethylene Propylene Rubber (EPR) insulation was determined by analysis
- Each terminal is manufactured of pure electrolytic copper per QQ-C 576 and Bright tin plated per MIL-T-10727 and Meets or Exceeds SAE-AS7928 using stranded copper AWG wire
- The KYNAR insulation offers 200 Megarad Radiation resistance
- The type YAES-K, radiation resistant KYNAR insulated terminals are suitable for class 1E critical circuits and non-critical nuclear associated applications
- KYNAR insulation - provides 200 Megarad radiation resistance plus successfully tested for insulation compatibility
- An integral one piece copper barrel/insulation grip and wire strain relief design provides improved physical strength characteristics over a multi-piece design
- The KYNAR insulation is locked in place - the insulation will not move or twist Off, thereby maintains proper dielectric values
- Manufactured from pure electrolytic copper provides maximum conductivity, low resistance and ductility for excellent crimp forming properties
- Bright tin plated per MIL-T-10727 - Provides durable long-lasting resistance to corrosion
- Deep inner barrel serrations provides excellent electrical conductivity and pullout strength values
- Brazed seam provides a stronger barrel design to minimize any possible splitting and eliminates folding
- Smooth funnel entry provides easy wire insertion
- Color coded terminals - Provides easy wire size identification and inspection
- Coded raised dots in the die area of the connection after compression - Provides visual identification that the correct tool and die were used for proper installation
- Inspection hole permits visual check for proper wire insertion
Panduit Panduit PV2-38R-XY | Ring Terminal | UPC - 07498369496 Key Specs
| Note | PV2-38R-XY replaces PV2-38R-X |
| Stud Hole Size (In.) | 39/100 |
| Stud Hole Size (mm) | 9.9 |
| Stud Size | 3/8" |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #2 |
| Maximum Copper Conductor Size (AWG STR) | #2 |
| Maximum Copper Conductor Size (AWG) | #2 |
| Maximum Wire Size (AWG) | #2 |
| Wire Strip Length (In.) | 0.50 |
| Wire Strip Length (mm) | 12.7 |
| Standards Met | UL Listed 587H E52164 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Funnel |
| Barrel Length (In.) | 0.81 |
| Barrel Length (mm) | 20.5 |
Panduit Panduit PV2-38R-XY | Ring Terminal | UPC - 07498369496 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PV8-8R-QY Product Page | Download and View |
| Part Drawings | Ring terminal, 2awg, vinyl insulated | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit Panduit PV2-38R-XY | Ring Terminal | UPC - 07498369496 Environmental Information
| Panduit's RoHS Statement | Download and View |
