Panduit PV2-56R-XY | Pan-Term PV2-56R-XY Ring Terminal
Regular price
$51.01
Unit price
Description
Description

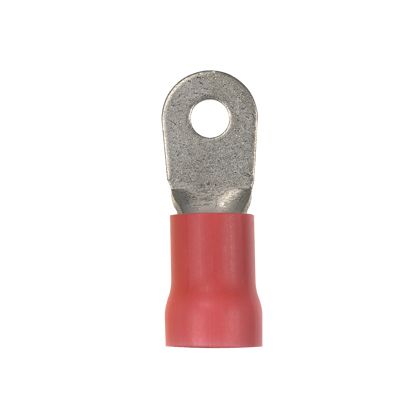

Panduit PV2-56R-XY | Pan-Term PV2-56R-XY Ring Terminal
Ring Terminal, large wire, 2 AWG, 5/16" stud size, vinyl insulated, standard package.
Specifications
Specifications
Panduit - PV2-56R-XY - Product Categories
- Wire Termination
- Ring Terminals
Panduit - PV2-56R-XY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PV2-56R-XY |
| Item Description | Pan-Term PV2-56R-XY Ring Terminal |
| Stud Hole Size (In.) | 5/16" |
| Stud Hole Size (mm) | 8 |
| Stud Size | 5/16" |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG) | #2 |
| Maximum Wire Size (AWG) | #2 |
| Minimum Wire Size (AWG) | #2 |
| Minimum Copper Conductor Size (AWG) | #2 |
| Wire Strip Length (In.) | 1/2 |
| Wire Strip Length (mm) | 12.7 |
| Standards Met | cULus Listed 587H E52164 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Funnel Entry |
| Barrel Length (In.) | 0.81 |
| Barrel Length (mm) | 20.5 |
| Flammability Rating | UL94V-0 |
| Insulation Diameter (In.) | 0.56 |
| Insulation Diameter (mm) | 14.2 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Wire Insulation Diameter (In.) | 0.56 |
| Maximum Wire Insulation Diameter (mm) | 14.2 |
| Outer Diameter (In.) | 0.56 |
| Outer Diameter (mm) | 14.2 |
| Sub Brand | Pan-Term |
| Overall Length (In.) | 1.96 |
| Overall Length (mm) | 49.8 |
| Overall Width (In.) | 0.68 |
| Overall Width (mm) | 17.3 |
| Tongue Length (In.) | 1.15 |
| Tongue Length (mm) | 29.2 |
| Tongue Thickness (In.) | 0.06 |
| Tongue Thickness (mm) | 1.5 |
| Tongue Width (In.) | 0.68 |
| Tongue Width (mm) | 17.3 |
| Packaging Type | Bottle |
| Product Type | Ring Terminal |
| For Use With | CT-720 (CD-720PV8-2), CT-2600/L (CD-2600-PV2) |
| Part Features | • Ring tongue design assures a secure connection in high vibration applications • Insulation support helps to prevent wire damage in bending applications • Internal barrel serrations assure good wire contact and maximum tensile strength |
Brand Name - PV2-56R-XY - Package Information
| UPC | 07498369500 |
|---|---|
| Standard Package Quantity | 10 |
| Standard Package Volume (cf) | 0.0105 |
| Standard Ctn. Quantity | 100 |
| Standard Ctn. Volume (cf) | 0.1051 |
