Panduit PV2-56R-XY | Ring Terminal | UPC - 07498369500
Regular price
$6.76
Unit price
Brand: Panduit
|
SKU:
972607
Regular price
$6.76
Unit price
Description
Description

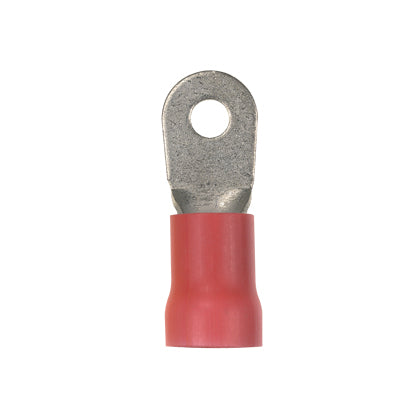

Panduit Pan-Term Terminal, Type PV-R, Stranded Conductor, 2 AWG Conductor, 5/16 in Stud, 1.96 in Length, Brazed Seam/Funnel Entry Barrel, Ring Tongue, 0.68 in W x 0.06 in THK Tongue, 600 VAC, 1/2 in L Wire Strip, 0.58 in Clearance, 221 deg F, Copper, Tin Plated, Red
Features + Benefits
- The nylon insulated seamless, electrolytic copper barrel with double thick tongue provides an extra strong insulated connection
- The terminal is rated 105 deg C and meets SAE-AS7928 requirements
- Double thick tongue provides maximum reliability and electrical capacity plus an extra strong terminal tongue, color code provides quick, easy wire size connector selection
- Manufactured from one piece pure electrolytic copper provides high conductivity, low resistance with no seams to split plus ductility for excellent crimp forming properties
- Tin electroplated provides durable long lasting resistance to corrosion
- Nylon insulation is locked in place insulation will not move or twist off
- 300 V nylon insulation- high dielectric strength and stability in demanding oily environmental conditions
- Color coded provides quick, easy wire size connector selection
Panduit PV2-56R-XY Key Specs
| Note | PV2-56R-XY replaces PV2-56R-X |
| Stud Hole Size (In.) | 33/100 |
| Stud Hole Size (mm) | 8.4 |
| Stud Size | 5/16" |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #2 |
| Maximum Copper Conductor Size (AWG STR) | #2 |
| Maximum Copper Conductor Size (AWG) | #2 |
| Maximum Wire Size (AWG) | #2 |
| Wire Strip Length (In.) | 0.50 |
| Wire Strip Length (mm) | 12.7 |
| Standards Met | UL Listed 587H E52164 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Funnel |
| Barrel Length (In.) | 0.81 |
| Barrel Length (mm) | 20.5 |
Panduit PV2-56R-XY Data Sheets
| Part Drawings | Field Terminable Plug Termination Tool | Download and View |
