Brand: Panduit
|
SKU:
10044891

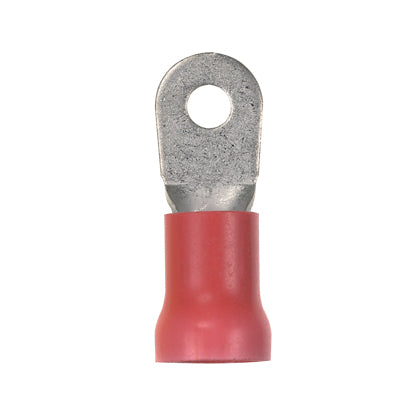

Panduit PV2-56RX-TY | Ring Terminal | UPC - 07498342093
Regular price
$684.00
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV2-56RX-TY | Ring Terminal | UPC - 07498342093
Regular price
$684.00
Unit price
Description
Description
Panduit Pan-Term Terminal, Type PV-RX, Stranded Conductor, 2 AWG Conductor, 5/16 in Stud, 1.93 in Length, Brazed Seam/Expanded Entry/Insulation Support Barrel, Ring Tongue, 0.68 in W x 0.06 in THK Tongue, 600 VAC, 1/2 in L Wire Strip, 0.58 in Clearance, 221 deg F, Copper, Tin Plated, Red
Features + Benefits
- Insulug type YAE-N nylon insulated terminals are designed with a multi finger insulation grip for paper, EPR and other elastic or hard to grip insulations
- EPR and other elastic or hard to grip Insulations
- The metal fingers firmly grip the insulation providing superior holding characteristics, cable support and strain relief
- Type YAE-N terminals are rated 105 deg C and meet military standard AS25036 Class 2 and SAE-AS7928 requirements
- Multi-finger insulation grip - Provides superior insulation holding characteristics
- Especially on epr and other elastic type insulations
- Brazed seam provides stronger more durable termination
- Manufactured of pure electrolytic copper provides maximum conductivity, low resistance and ductility for excellent crimp forming properties, deep V groove
- Inner barrel serrations, provide optimum conductivity, reliability and holding power, smooth funnel entry - easy wire insertion
Panduit Panduit PV2-56RX-TY | Ring Terminal | UPC - 07498342093 Key Specs
| Note | PV2-56RX-TY replaces PV2-56RX-T |
| Stud Hole Size (In.) | 33/100 |
| Stud Hole Size (mm) | 8.4 |
| Stud Size | 5/16" |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #2 |
| Maximum Copper Conductor Size (AWG STR) | #2 |
| Maximum Copper Conductor Size (AWG) | #2 |
| Maximum Wire Size (AWG) | #2 |
| Minimum Wire Size (AWG) | #2 |
| Minimum Copper Conductor Size (AWG SOL) | #2 |
| Minimum Copper Conductor Size (AWG STR) | #2 |
| Minimum Copper Conductor Size (AWG) | #2 |
| Wire Strip Length (In.) | 0.50 |
| Wire Strip Length (mm) | 12.7 |
| Standards Met | UL Listed 587H E52164 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
Panduit Panduit PV2-56RX-TY | Ring Terminal | UPC - 07498342093 Data Sheets
| Selection Guides | Terminal Tools Selection Guide | Download and View |
| Part Drawings | Ring Terminals, Large Wire - Vinyl Expanded Insulation, PV2-RX | Download and View |
Panduit Panduit PV2-56RX-TY | Ring Terminal | UPC - 07498342093 Environmental Information
| Panduit's RoHS Statement | Download and View |
