Brand: Panduit
|
SKU:
9951008

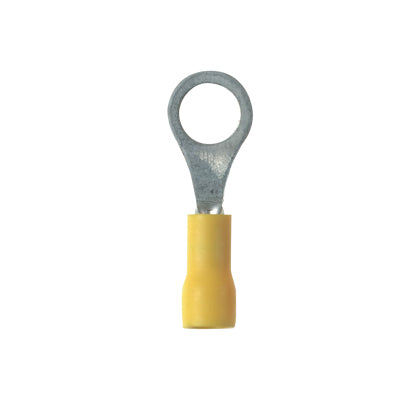

Panduit PV22-4R-MYY | RingTerm, Vyl, 26, 22AWG, #4Stud, PK1000
Regular price
$281.99
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV22-4R-MYY | RingTerm, Vyl, 26, 22AWG, #4Stud, PK1000
Regular price
$281.99
Unit price
Description
Description
Panduit PV22-4R-MYY | RingTerm, Vyl, 26, 22AWG, #4Stud, PK1000
Panduit Pan-Term Ring Terminal, Solid/Stranded Copper Conductor, 26 to 22 AWG Conductor, #4 Stud, 0.68 in Length, Brazed Seam/Funnel Entry Barrel, 600 VAC, Specifications: Vinyl Insulation, 3/16 in L Wire Strip, 221 deg F, Tin Coated, Yellow, 0.21 in W
Panduit - PV22-4R-MYY - Features
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
Specifications
Specifications
Panduit - PV22-4R-MYY - Specifications
| Insulation Material | Vinyl |
|---|---|
| Maximum Wire Size (AWG) | 22 |
| Minimum Wire Size (AWG) | #26 |
| Wire Strip Length (In.) | 0.18 |
| Wire Strip Length (mm) | 4.8 |
| Base Material | Copper |
| Seam Type | Brazed |
| Sub Brand | Pan-Term® |
| Overall Length (In.) | 0.68 |
| Overall Length (mm) | 17.3 |
| Overall Width (In.) | 0.21 |
| Overall Width (mm) | 5.3 |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
Panduit - PV22-4R-MYY - Package Includes
| UPC | 61305675799 |
|---|---|
| Std. Pkg. Qty. | 1000 |
| Std. Pkg. Volume (cf) | 0.1198 |
| Std. Ctn. Qty. | 0 |
| Std. Ctn. Volume (cf) | 0.0000 |
