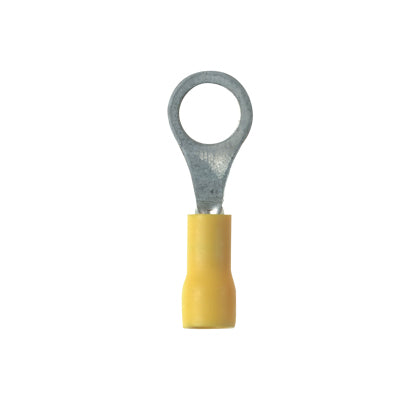

Panduit PV22-6R-MYY | | UPC - 61305675803
Regular price
$294.98
Unit price
Brand: Panduit
|
SKU:
PAN-PV22-6R-MYY
Regular price
$294.98
Unit price
Description
Description
Panduit Pan-Term Ring Terminal, Solid/Stranded Copper Conductor, 26 to 22 AWG Conductor, #6 Stud, 0.68 in Length, Brazed Seam/Funnel Entry Barrel, 600 VAC, Specifications: Vinyl Insulation, 3/16 in L Wire Strip, 221 deg F, Tin Coated, Yellow, 0.21 in W
Features + Benefits
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
Panduit PV22-6R-MYY | | UPC - 61305675803 Key Specs
| Stud Hole Size (mm) | 3.5 |
| Insulation Material | Vinyl |
| Maximum Wire Size (AWG) | 26 AWG - 22 AWG |
| Wire Strip Length (In.) | 0.18 |
| Wire Strip Length (mm) | 4.8 |
| Base Material | Copper |
| Finish/Coating | Tinned |
| Seam Type | Brazed |
| Sub Brand | Pan-Term |
| Overall Length (In.) | 0.68 |
| Overall Length (mm) | 17.3 |
| Overall Width (In.) | 0.21 |
| Overall Width (mm) | 5.3 |
| Part Features | • Ring tongue design assures a secure connection in high vibration applications • Insulation support helps to prevent wire damage in bending applications • Internal barrel serrations assure good wire contact and maximum tensile strength |
Panduit PV22-6R-MYY | | UPC - 61305675803 Data Sheets
| Selection Guides | Terminal Tools Selection Guide | Download and View |
| Part Drawings | Ring Terminal, Vinyl Insulated 26-22 AWG | Download and View |
Panduit PV22-6R-MYY | | UPC - 61305675803 Environmental Information
| Panduit's RoHS Statement | Download and View |
