Brand: Panduit
|
SKU:
9841843-EA
Panduit PV22-8R-CYY | RingTerm,Vyl,26,22AWG,#8Stud,PK100
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV22-8R-CYY | RingTerm,Vyl,26,22AWG,#8Stud,PK100
Regular price
$1.46
Unit price
Description
Description

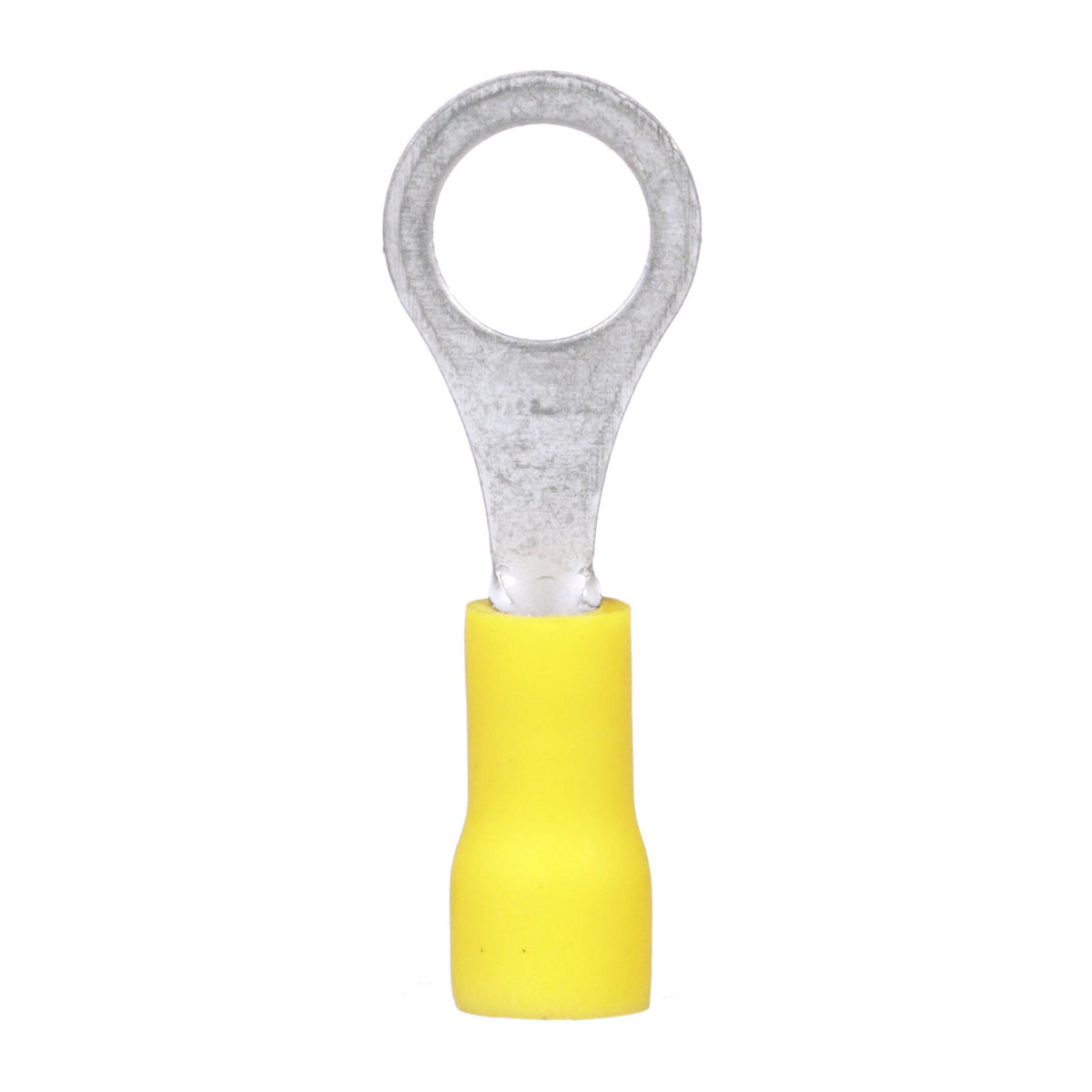

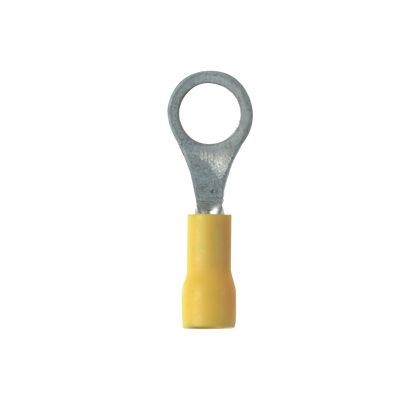

Panduit PV22-8R-CYY | RingTerm,Vyl,26,22AWG,#8Stud,PK100
Ring Terminal, 26 – 22 AWG, #8 stud size, vinyl insulated, funnel entry, standard package.
Panduit PV22-8R-CYY - TERMINAL - RING TERMINAL, VINYL INSULATED
Specifications
Specifications
Panduit - PV22-8R-CYY - Product Categories
- Wire Termination
- Ring Terminals
Panduit - PV22-8R-CYY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PV22-8R-CYY |
| Item Description | RingTerm,Vyl,26,22AWG,#8Stud,PK100 |
| Stud Hole Size (mm) | 4 |
| Insulation Material | Vinyl |
| Maximum Wire Size (AWG) | #22 |
| Minimum Wire Size (AWG) | #26 |
| Wire Strip Length (In.) | 0.18 |
| Wire Strip Length (mm) | 4.8 |
| Base Material | Copper |
| Finish/Coating | Tinned |
| Seam Type | Brazed |
| Sub Brand | Pan-Term |
| Overall Length (In.) | 0.78 |
| Overall Length (mm) | 19.8 |
| Overall Width (In.) | 0.26 |
| Overall Width (mm) | 6.6 |
| Part Features | • Ring tongue design assures a secure connection in high vibration applications • Insulation support helps to prevent wire damage in bending applications • Internal barrel serrations assure good wire contact and maximum tensile strength |
Panduit - PV22-8R-CYY - Package Information
| UPC | 61305675804 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0681 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
