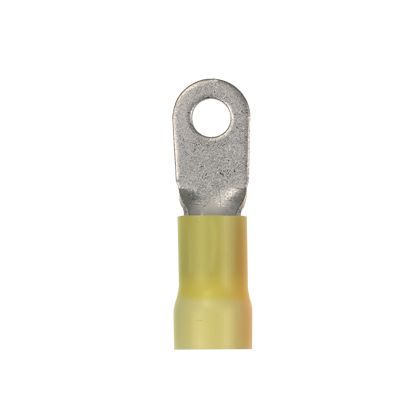

Panduit PV4-38R-E | Pan-Term PV4-38R-E Ring Terminal

Name: Panduit PV4-38R-E | Pan-Term PV4-38R-E Ring Terminal
Brand: Anixter
SKU: DRC-011123
Price: 86.98 USD
Availability: InStock

$86.98

Description

Ring Terminal, large wire, 4 AWG, 3/8" stud size, vinyl insulated, standard package.

Brand Name	Panduit
Manufacturer Part Number	PV4-38R-E
Item Description	Pan-Term PV4-38R-E Ring Terminal
Stud Hole Size (In.)	3/8"
Stud Hole Size (mm)	10
Stud Size	3/8"
Insulation Material	Vinyl
Maximum Copper Conductor Size (AWG)	#4
Maximum Wire Size (AWG)	#4
Minimum Wire Size (AWG)	#4
Minimum Copper Conductor Size (AWG)	#4
Wire Strip Length (In.)	1/2
Wire Strip Length (mm)	12.7
Standards Met	cULus Listed 587H E52164
Base Material	Copper
Maximum Voltage (V)	600
Maximum Voltage (kV)	0.6
Finish/Coating	Tin-Plated
Color Code	Yellow
Barrel Type	Funnel Entry
Barrel Length (In.)	0.8
Barrel Length (mm)	20.3
Flammability Rating	UL94V-0
Insulation Diameter (In.)	0.45
Insulation Diameter (mm)	11.4
Maximum Operating Temperature (°C)	105
Maximum Operating Temperature (°F)	221
Maximum Wire Insulation Diameter (In.)	0.45
Maximum Wire Insulation Diameter (mm)	11.4
Outer Diameter (In.)	0.45
Outer Diameter (mm)	11.4
Sub Brand	Pan-Term
Overall Length (In.)	1.95
Overall Length (mm)	49.5
Overall Width (In.)	0.68
Overall Width (mm)	17.2
Tongue Length (In.)	1.15
Tongue Length (mm)	29.2
Tongue Thickness (In.)	0.05
Tongue Thickness (mm)	1.3
Tongue Width (In.)	0.68
Tongue Width (mm)	17.2
Packaging Type	Bottle
Product Type	Ring Terminal
For Use With	CT-720 (CD-720PV8-2); CT-2600 (CD-2600-PV4)
Part Features	• Ring tongue design assures a secure connection in high vibration applications • Insulation support helps to prevent wire damage in bending applications • Internal barrel serrations assure good wire contact and maximum tensile strength
