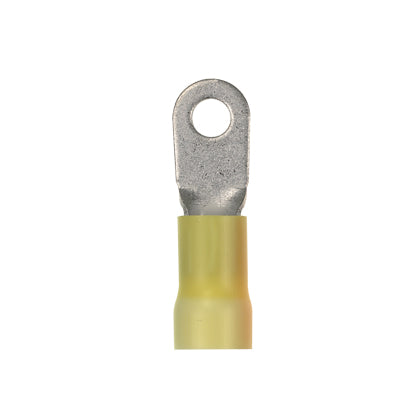

Panduit PV4-38R-E | Pan-Term Ring Terminal
Regular price
$93.99
Unit price
Brand: Panduit
|
SKU:
PAN-PV4-38R-E
Regular price
$93.99
Unit price
Description
Description
Panduit PV4-38R-E | Pan-Term Ring Terminal
Ensure reliable, insulated connections with our ring terminal, designed for durability and secure performance in various electrical applications.
Ring Terminal, large wire, 4 AWG, 3/8" stud size, vinyl insulated.
Panduit Pan-Term Terminal, Type PV-R, Stranded Conductor, 4 AWG Conductor, 3/8 in Stud, 1.95 in Length, Brazed Seam/Funnel Entry Barrel, Ring Tongue, 0.68 in W x 0.05 in THK Tongue, 600 VAC, 1/2 in L Wire Strip, 1/2 in Clearance, 221 deg F, Copper, Tin Plated, Yellow
Panduit - PV4-38R-E - Features
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Insulation support helps to prevent wire damage in bending applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- UL Flammability UL 94V-0, maximum insulation temperature 221F (105C)
- Internal barrel serrations assure good wire contact and maximum tensile strength
- UL and CSA rated up to 600 V per UL 486
Specifications
Specifications
Panduit - PV4-38R-E - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PV4-38R-E |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Stud Hole Size (In.) | 3/8 |
| Stud Hole Size (mm) | 10 |
| Stud Size | 3/8" |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG) | 4 |
| Minimum Copper Conductor Size (AWG) | #4 |
| Maximum Wire Size (AWG) | 4 |
| Minimum Wire Size (AWG) | #4 |
| Wire Strip Length (In.) | 1/2 |
| Wire Strip Length (mm) | 12.7 |
| Standards Met | cULus Listed 587H E52164 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
| Barrel Type | Funnel Entry |
| Barrel Length (In.) | 0.8 |
| Barrel Length (mm) | 20.3 |
| Flammability Rating | UL94V-0 |
| Insulation Diameter (In.) | 0.45 |
| UPC | 07498387104 |
