Brand: Panduit
|
SKU:
10044813

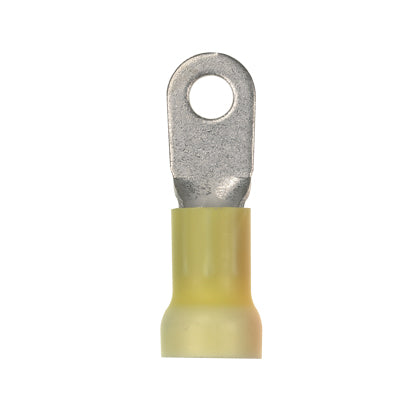

Panduit PV4-38RX-T | Loose Piece Ring Terminal | UPC - 07498387043
Regular price
$388.65
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV4-38RX-T | Loose Piece Ring Terminal | UPC - 07498387043
Regular price
$388.65
Unit price
Description
Description
Panduit Pan-Term Terminal, Type PV-RX, Stranded Conductor, 4 AWG Conductor, 3/8 in Stud, 1.94 in Length, Brazed Seam/Expanded Entry/Insulation Support Barrel, Ring Tongue, 0.68 in W x 0.05 in THK Tongue, 600 VAC, 1/2 in L Wire Strip, 0.53 in Clearance, 221 deg F, Copper, Tin Plated, Yellow
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
Panduit Panduit PV4-38RX-T | Loose Piece Ring Terminal | UPC - 07498387043 Key Specs
| Stud Hole Size (In.) | 39/100 |
| Stud Hole Size (mm) | 9.9 |
| Stud Size | 3/8" |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #4 |
| Maximum Copper Conductor Size (AWG STR) | #4 |
| Maximum Copper Conductor Size (AWG) | #4 |
| Maximum Wire Size (AWG) | #4 |
| Minimum Wire Size (AWG) | #4 |
| Minimum Copper Conductor Size (AWG SOL) | #4 |
| Minimum Copper Conductor Size (AWG STR) | #4 |
| Minimum Copper Conductor Size (AWG) | #4 |
| Wire Strip Length (In.) | 0.50 |
| Wire Strip Length (mm) | 12.7 |
| Standards Met | UL Listed 587H E52164 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
Panduit Panduit PV4-38RX-T | Loose Piece Ring Terminal | UPC - 07498387043 Environmental Information
| Panduit's RoHS Statement | Download and View |
