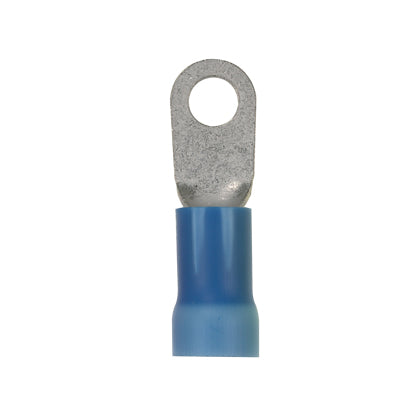

Panduit PV6-10R-T | Pan-Term Ring Terminal, Blue, Vinyl, 6 AWG, #10...
Description
Description
Ensure reliable, insulated connections with our ring terminal, designed for durability and secure performance in various electrical applications.
Ring Terminal, large wire, 6 AWG, #10 stud size, vinyl insulated, bulk package.
Panduit Pan-Term Terminal, Type PV-R, Stranded Conductor, 6 AWG Conductor, #10 Stud, 1.62 in Length, Brazed Seam/Funnel Entry Barrel, Ring Tongue, 0.47 in W x 0.05 in THK Tongue, 600 VAC, 7/16 in L Wire Strip, 0.43 in Clearance, 221 deg F, Copper, Tin Plated, Blue
Panduit - PV6-10R-T - Features
- A wider wire entry for heavy-wall insulation
- Insulation support helps to prevent wire damage in bending applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- UL Flammability UL 94V-0, maximum insulation temperature 221F (105C)
- Internal barrel serrations assure good wire contact and maximum tensile strength
- UL and CSA rated up to 600 V per UL 486
Specifications
Specifications
Panduit - PV6-10R-T - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PV6-10R-T |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Stud Hole Size (In.) | #10 |
| Stud Hole Size (mm) | 5 |
| Stud Size | #10 |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG) | 6 |
| Minimum Copper Conductor Size (AWG) | #6 |
| Maximum Wire Size (AWG) | 6 |
| Minimum Wire Size (AWG) | #6 |
| Wire Strip Length (In.) | 7/16 |
| Wire Strip Length (mm) | 11.1 |
| Standards Met | cULus Listed 587H E52164 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Barrel Type | Funnel Entry |
| Barrel Length (In.) | 0.69 |
| Barrel Length (mm) | 17.5 |
| Flammability Rating | UL94V-0 |
| Insulation Diameter (In.) | 0.34 |
| UPC | 07498387120 |
