Brand: Panduit
|
SKU:
PV6-10R-X

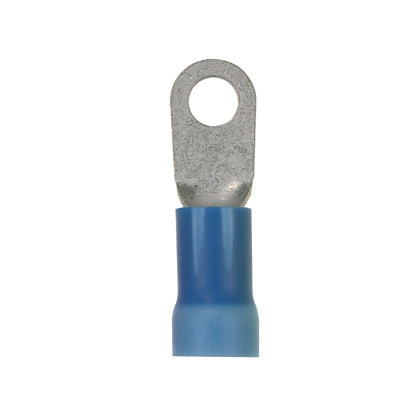

Panduit PV6-10R-X | Loose Piece Ring Terminal | UPC - 07498312447
Regular price
$42.19
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV6-10R-X | Loose Piece Ring Terminal | UPC - 07498312447
Regular price
$42.19
Unit price
Description
Description
Panduit Pan-Term Terminal, Type PV-R, Stranded Conductor, 6 AWG Conductor, #10 Stud, 1.62 in Length, Brazed Seam/Funnel Entry Barrel, Ring Tongue, 0.47 in W x 0.05 in THK Tongue, 600 VAC, 7/16 in L Wire Strip, 0.43 in Clearance, 221 deg F, Copper, Tin Plated, Blue
Features + Benefits
- Ring tongue design assures a secure connection in high vibration applications
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
Panduit PV6-10R-X | Loose Piece Ring Terminal | UPC - 07498312447 Key Specs
| Note | PV6-10R-X replaces PV6-10R-E |
| Stud Hole Size (In.) | 1/5 |
| Stud Hole Size (mm) | 5.1 |
| Stud Size | #10 |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #6 |
| Maximum Copper Conductor Size (AWG STR) | #6 |
| Maximum Copper Conductor Size (AWG) | #6 |
| Maximum Wire Size (AWG) | #6 |
| Minimum Wire Size (AWG) | #6 |
| Minimum Copper Conductor Size (AWG SOL) | #6 |
| Minimum Copper Conductor Size (AWG STR) | #6 |
| Minimum Copper Conductor Size (AWG) | #6 |
| Wire Strip Length (In.) | 0.43 |
| Wire Strip Length (mm) | 10.9 |
| Standards Met | UL Listed 587H E52164 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
Panduit PV6-10R-X | Loose Piece Ring Terminal | UPC - 07498312447 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PV8-8R-QY Product Page | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
| Part Drawings | Ring Terminals, Large Wire, Vinyl Insulated, PV6-R | Download and View |
Panduit PV6-10R-X | Loose Piece Ring Terminal | UPC - 07498312447 Environmental Information
| Panduit's RoHS Statement | Download and View |
